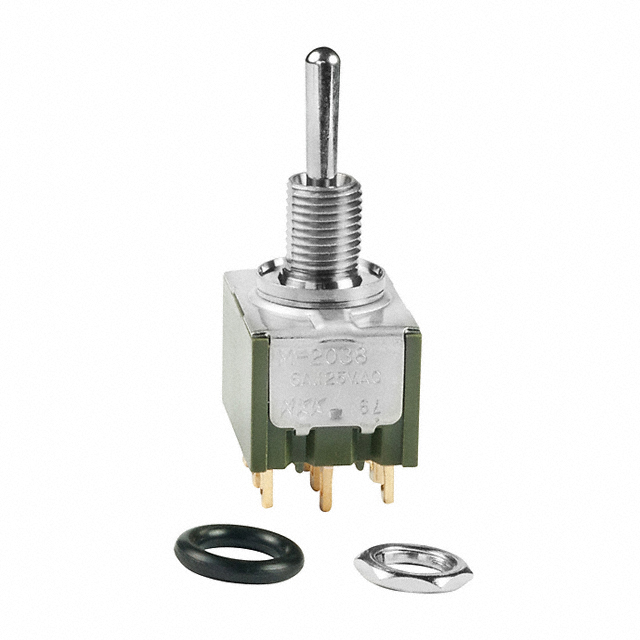

M2038SD3A01

Obsolete

NKK Switches

SWITCH TOGGLE 3PDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE 3PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2038SD3A01

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	3PDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Type	Switch Function	Electrical Life	Actuator Material	Voltage Rating - DC	Illumination	Bushing Thread	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Ingress Protection
NKK Switches M2038SD3A01	Standard Round	Mom-Off-Mom	25000 Steps	Brass Chrome Plated	30 V	Non-Illuminated	1/4-40	3PDT	6.5 mm	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	3 A 6 A	125 V	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 3PDT Panel Mount
