Description
General part information

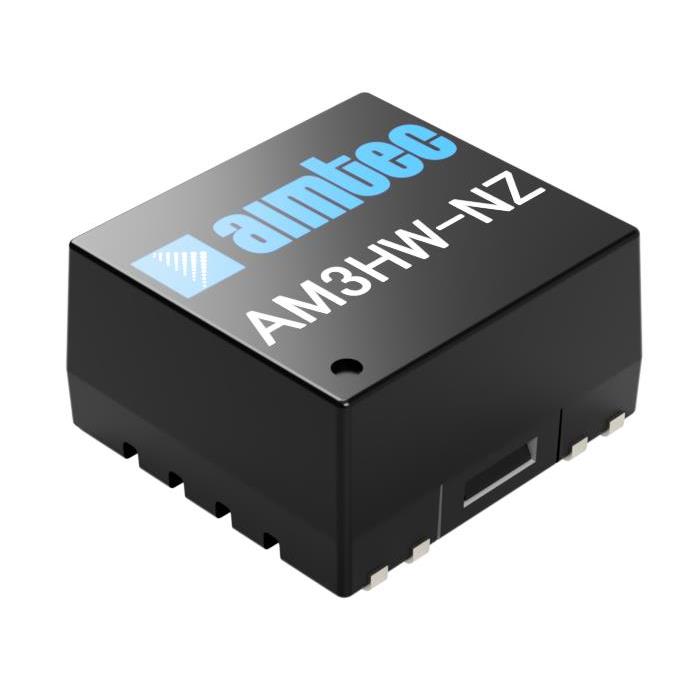

AM3HW Series
Isolated Module DC DC Converter 1 Output 15V 200mA 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AM3HW-2415S-NZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, cURus |
| Current - Output (Max) | 200 mA |
| Efficiency | 83 % |
| Features | Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 7 Leads |
| Package Name | 14-SMD Module |
| Power (Watts) | 3 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.76 in |
| Size / Dimension Width | 0.71 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
