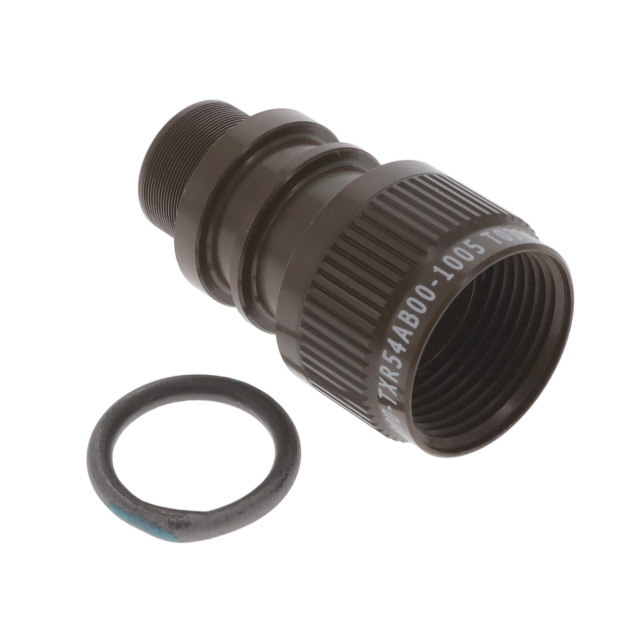

TXR54AB00-1005AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BCK ADPT SZ10-10SL 5/8-24

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR54AB00-1005AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BCK ADPT SZ10-10SL 5/8-24

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.49

Description

General part information

TXR54AB00 Series

Olive Drab Connector Backshell, Heat Shrink Adapter 5/8-24 UNEF 10, 10S, 10SL

Documents

Technical documentation and resources

Datasheet

Specification	TXR54AB00-1005AI	TXR54AB00 Series

Cable Exit	180 °	180 °
Color	Olive Drab	Olive Drab
Diameter - Outside [diameter]	18.6 mm	15.6 - 62.7 mm
Diameter - Outside [diameter]	0.732 in	0.614 - 2.469 in
Features	Tinel Lock	Tinel Lock, Chain Attachment, Self Locking
For Use With/Related Products	MIL-C-81703 Series III, MIL-DTL-26482 Series II, III, MIL-C-5015G MS3400 Series, MIL-DTL-83723 Series I	MIL-C-81703 Series III, MIL-DTL-26482 Series II, III, MIL-C-5015G MS3400 Series, MIL-DTL-83723 Series I
Includes	1 Braid, 1 Tinel Ring, 1 Backshell	1 Braid, 1 Tinel Ring, 1 Backshell
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium, Olive Drab Cadmium
Shell Size - Insert	10, 10S, 10SL	12S, 7, 12, 10, 10S, 10SL, 16S, 19, 16, 27, 18, 14, 14S
Shell Size - Insert	-	8, 8S
Shell Size - Insert	-	20 - 37
Shielding	Shielded	Shielded
Thread Size	5/8-24 UNEF	3/4-20 UNEF, 5/8-24 UNEF, 1-20 UNEF, UNEF, 7/8-20 UNEF, 1/2-20 UNF, 1 3/16-18 UNEF, 1 5/16-18 UNEF, 2-18 UNS, 2 1/4-16 UN, 1 7/16-18 UNEF
Thread Size	-	18
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Shielding	Plating	Thread Size	Color	Shell Size - Insert	Type	For Use With/Related Products	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Includes	Features	Cable Exit	Thread Size
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1208AI2-CS2472	Shielded	Cadmium	3/4-20 UNEF	Olive Drab	12, 12S, 7	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.854 in	21.7 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1206AI-CS8117	Shielded	Cadmium	3/4-20 UNEF	Olive Drab	12, 12S, 7	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.854 in	21.7 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1004BI	Shielded	Cadmium	5/8-24 UNEF	Olive Drab	10, 10S, 10SL	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.732 in	18.6 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1005AI	Shielded	Cadmium	5/8-24 UNEF	Olive Drab	10, 10S, 10SL	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.732 in	18.6 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1612AI	Shielded	Cadmium	1-20 UNEF	Olive Drab	16, 16S, 19	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	1.11 in	28.19 mm		Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1810AI2-CS2472	Shielded	Cadmium	UNEF	Olive Drab	18, 27	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	1.217 "	30.9 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °	, 18
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1006AI	Shielded	Cadmium	5/8-24 UNEF	Olive Drab	10, 10S, 10SL	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.732 in	18.6 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1606AI-CS1000	Shielded	Cadmium	1-20 UNEF	Olive Drab	16, 16S, 19	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	1.11 in	28.19 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1605AI	Shielded	Cadmium	1-20 UNEF	Olive Drab	16, 16S, 19	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	1.11 in	28.19 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	180 °
TE Connectivity Aerospace, Defense and Marine TXR54AB00-1205AI2J	Shielded	Cadmium	3/4-20 UNEF	Olive Drab	12, 12S, 7	Backshell, Heat Shrink Adapter	III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I	Aluminum Alloy	0.854 in	21.7 mm	1 Backshell, 1 Braid, 1 Tinel Ring	Chain Attachment, Tinel Lock	180 °

Part

Shielding

Plating

Thread Size

Color

Shell Size - Insert

Type

For Use With/Related Products

Material

Diameter - Outside [diameter]

Includes

Features

Cable Exit

Thread Size

Shell Size - Insert [custom]

Shell Size - Insert

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1208AI2-CS2472

Shielded

Cadmium

3/4-20 UNEF

Olive Drab

12, 12S, 7

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.854 in

21.7 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1206AI-CS8117

Shielded

Cadmium

3/4-20 UNEF

Olive Drab

12, 12S, 7

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.854 in

21.7 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1004BI

Shielded

Cadmium

5/8-24 UNEF

Olive Drab

10, 10S, 10SL

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.732 in

18.6 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1005AI

Shielded

Cadmium

5/8-24 UNEF

Olive Drab

10, 10S, 10SL

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.732 in

18.6 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1612AI

Shielded

Cadmium

1-20 UNEF

Olive Drab

16, 16S, 19

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

1.11 in

28.19 mm

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1810AI2-CS2472

Shielded

Cadmium

UNEF

Olive Drab

18, 27

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

1.217 "

30.9 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

, 18

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1006AI

Shielded

Cadmium

5/8-24 UNEF

Olive Drab

10, 10S, 10SL

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.732 in

18.6 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1606AI-CS1000

Shielded

Cadmium

1-20 UNEF

Olive Drab

16, 16S, 19

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

1.11 in

28.19 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1605AI

Shielded

Cadmium

1-20 UNEF

Olive Drab

16, 16S, 19

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

1.11 in

28.19 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Tinel Lock

180 °

TE Connectivity Aerospace, Defense and Marine

TXR54AB00-1205AI2J

Shielded

Cadmium

3/4-20 UNEF

Olive Drab

12, 12S, 7

Backshell, Heat Shrink Adapter

III, MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I

Aluminum Alloy

0.854 in

21.7 mm

1 Backshell, 1 Braid, 1 Tinel Ring

Chain Attachment, Tinel Lock

180 °
