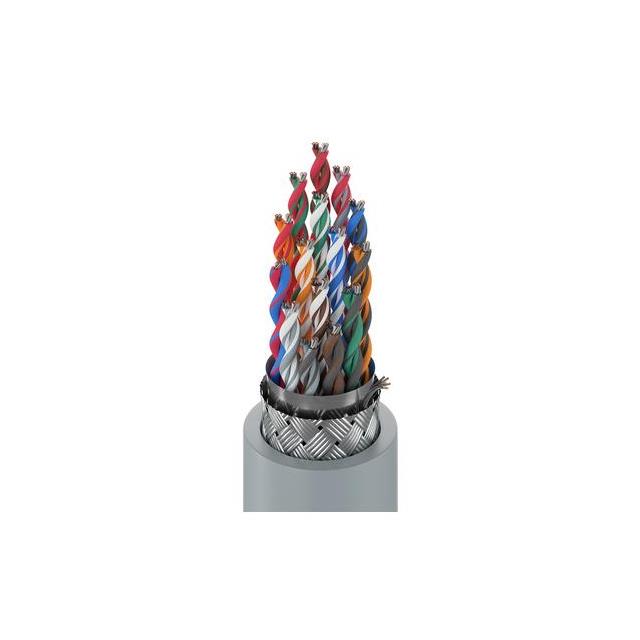

8115 0601000
ActiveBelden Inc.
MULTI-PAIR 30COND 24AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8115 0601000
ActiveBelden Inc.
MULTI-PAIR 30COND 24AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8115 0601000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 12.12 mm |
| Jacket (Insulation) Diameter [diameter] | 0.477 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Chrome |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 30 (15 Pair Twisted) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 14.43 | |
Description
General part information
8115 Series
30 (15 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
