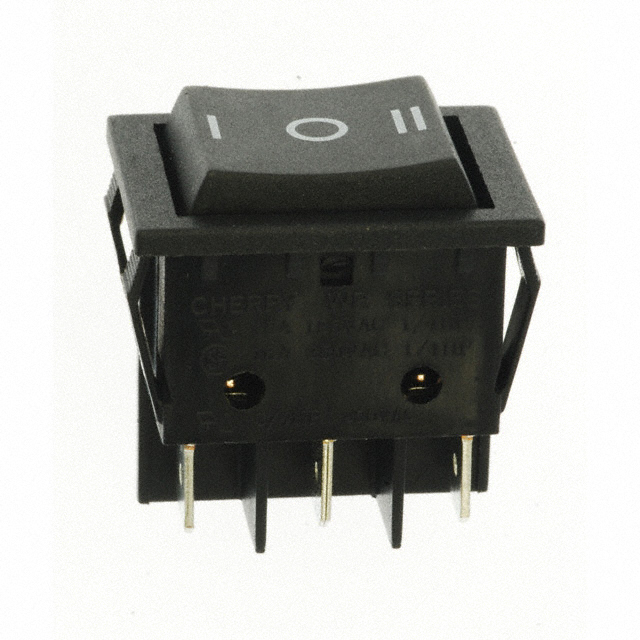

WRG34F2HBBNN
ObsoleteZF Electronics
SWITCH ROCKER DPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
WRG34F2HBBNN
ObsoleteZF Electronics
SWITCH ROCKER DPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WRG34F2HBBNN |
|---|---|
| Actuator Marking | I O II |
| Actuator Type | Concave (Curved) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WRG34F2H Series
Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
