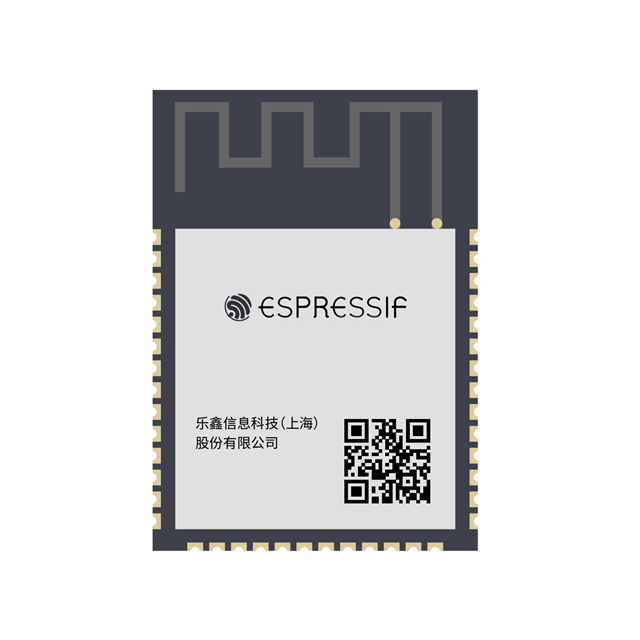

ESP32-S3-WROOM-1-N8R2

Active

Espressif Systems

RF TXRX MODULE WIFI PCB TRACE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESP32-S3 Download Functions Security Advisory Datasheet

ESP32-S3-WROOM-1-N8R2

Active

Espressif Systems

RF TXRX MODULE WIFI PCB TRACE

Deep-Dive with AI

DocumentsESP32-S3 Download Functions Security Advisory Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-S3-WROOM-1-N8R2	ESP32-S3 Series

Antenna Type	PCB Trace	Antenna Not Included, U.FL, PCB Trace, Antenna Not Included
Contents	-	Accessories, Board(s)
Current - Receiving	-	91 - 100 mA
Current - Receiving	-	88 - 97 mA
Current - Transmitting	-	330 - 355 mA
Current - Transmitting	-	273 - 285 mA
Data Rate	150 Mbps	150 Mbps
Data Rate (Max)	-	150 Mbps
Embedded	-	False, True
For Use With/Related Products	-	ESP32-S3-WROOM-1-N8, ESP32-S3-WROOM-2-N32R8V, ESP32-S3, ESP32-S3-WROOM-1-N8R2, ESP32-S3-WROOM-1U-N8R8, ESP32-S3-WROOM-1U-N8R2, ESP32-S3-WROOM-1U-N8
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
Function	-	LCD Touch Screen, Voice Recognition
GPIO	-	30
Memory Size	8 MB, 2 MB, 384 kB	2 - 512 MB
Memory Size	-	8 MB
Memory Size	-	8 MB
Memory Size	-	384 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	65 - 105 °C
Operating Temperature	-	-40 °C
Package / Case	-	41-SMD Module, 56-VFQFN Exposed Pad
Power - Output	-	20.5 - 21 dBm
Primary Attributes	-	3.95 in
Primary Attributes	-	480x480
Protocol	Bluetooth v5.0, 802.11a/b/g/n	Bluetooth v5.0, 802.11b/g/n, 802.11a/b/g/n
RF Family/Standard	WiFi	WiFi, Bluetooth
Secondary Attributes	-	Capacitive Touch Screen
Sensitivity	-	-104.5 - -98.4 dBm
Serial Interfaces	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC, PCM, SDIO, JTAG, IrDA
Supplied Contents	-	Board(s), Accessories, Cable(s)
Supplier Device Package	-	7
Supplier Device Package	-	56-QFN
Supplier Device Package	-	7
Type	-	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver, Display, Audio, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), TxRx + MCU, Bluetooth® 5.x
Utilized IC / Part	ESP32-S3	ESP32-S3, GC9503CV, FT5x06, ESP32-S3-WROOM-1, ESP32-S3R2, ESP32-S3-MINI-1, ESP32-S3R8V
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.8 - 3 V
Voltage - Supply	-	3.3 V

ESP32-S3 Series

ESP32-S3-WROOM-1-N8 DEV BRD

Part	For Use With/Related Products	Supplied Contents	Type	Frequency	Memory Size	Antenna Type	RF Family/Standard	Current - Receiving [Max]	Current - Receiving [Min]	Data Rate	Package / Case	Mounting Type	Power - Output	Protocol	Serial Interfaces	Sensitivity	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Contents	Secondary Attributes	Primary Attributes	Primary Attributes	Function
Espressif Systems ESP32-S3-DEVKITC-1-N8	ESP32-S3-WROOM-1-N8	Board(s)	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
Espressif Systems ESP32-S3-WROOM-1U-N16R8				2.4 GHz	8 MB, 16 MB, 384 kB	Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	65 °C	-40 °C	3.6 V	3 V
Espressif Systems ESP32-S3-DEVKITC-1-N32R8V	ESP32-S3-WROOM-2-N32R8V	Board(s)	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
Espressif Systems ESP32-S3-WROOM-1-N4				2.4 GHz	4 MB, 384 kB	PCB Trace	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3
Espressif Systems ESP32-S3-LCD-EV-BOARD		Accessories, Board(s)	Display																				ESP32-S3-WROOM-1, FT5x06, GC9503CV	Accessories, Board(s)	Capacitive Touch Screen	3.95 in	480x480	LCD Touch Screen
Espressif Systems ESP32-S3-WROOM-1-N16R2				2.4 GHz		PCB Trace	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-WROOM-1U-N16R2				2.4 GHz		Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-WROOM-1U-N8R2				2.4 GHz	2 MB, 8 MB, 384 kB	Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-BOX-LITE		Board(s)	Audio																				ESP32-S3	Board(s)				Voice Recognition
Espressif Systems ESP32-S3-KORVO-2-LCD	ESP32-S3	Accessories, Board(s), Cable(s)	802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
