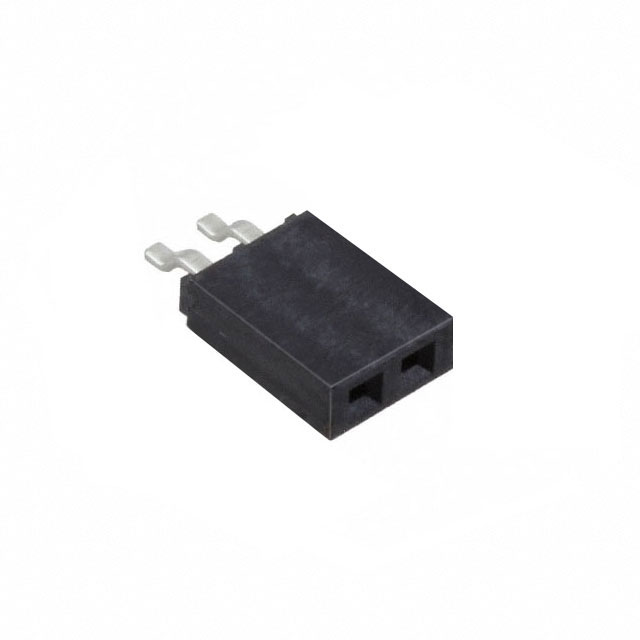

SMH-102-02-T-S-TR

Active

Samtec Inc.

CONN RCPT 2POS 0.1 TIN SMD R/A

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 2POS 0.1 TIN SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-102-02-T-S-TR

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height	Termination	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Color	Fastening Type	Mounting Type	Material Flammability Rating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Number of Positions	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SMH-102-02-L-D	10 çin	0.25 çm	Forked	0.195 in	4.95 mm	Solder	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	-55 °C	125 °C	2	Black	Push-Pull	Surface Mount Right Angle	UL94 V-0	Tin	0.1 in	2.54 mm	Phosphor Bronze	All	Gold	Receptacle	4
Samtec Inc. SMH-102-02-T-S-TR			Forked			Solder	Liquid Crystal Polymer (LCP)			Square	-55 °C	105 ░C	1	Black	Push-Pull	Surface Mount Right Angle	UL94 V-0	Tin	0.1 in	2.54 mm	Phosphor Bronze	All		Receptacle	2	0.095 in	2.41 mm
