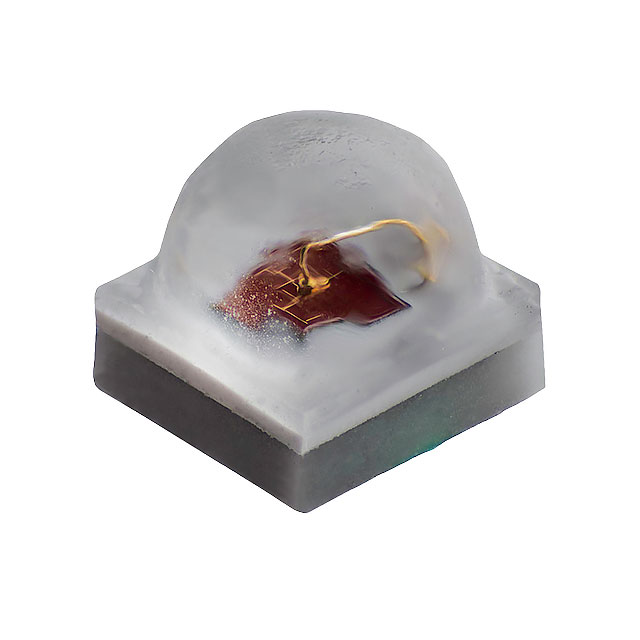

XQARDO-02-0000-000000Y01

Active

Cree LED

LED XLAMP XQA RED-ORG 615NM SMD

Search across all available documentation for this part.

Active

Cree LED

LED XLAMP XQA RED-ORG 615NM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQARDO-02-0000-000000Y01	XQARDO Series

Color	Red-Orange	Red-Orange
Current - Max [Max]	250 mA	250 mA
Current - Test	175 mA	175 mA
Height - Seated (Max) [Max]	1.73 mm	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "	0.068 "
Lumens/Watt @ Current - Test	86 lm/W	86 - 112 lm/W
Luminous Flux @ Current/Temperature	33 lm	33 - 43 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	SMD
Thermal Resistance of Package [diameter]	18 °C/W	18 °C/W
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	2.4 V	2.4 V
Wavelength	-	613 - 618 nm
Wavelength [Max]	620 nm	615 - 620 nm
Wavelength [Min]	610 nm	610 nm

LED XLAMP XQA RED-ORG 615NM SMD

Part	Supplier Device Package	Color	Wavelength [Max]	Wavelength [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current - Test	Viewing Angle	Mounting Type	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Package / Case	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Wavelength
Cree LED XQARDO-02-0000-000000201	SMD	Red-Orange	620 nm	610 nm	0.068 "	1.73 mm	175 mA	110 °	Surface Mount	18 °C/W	2.4 V	112 lm/W	0606, 1616 Metric	250 mA	43 lm	0.063 in	1.6 mm	0.063 in	1.6 mm
Cree LED XQARDO-02-0000-000000Y01	SMD	Red-Orange	620 nm	610 nm	0.068 "	1.73 mm	175 mA	110 °	Surface Mount	18 °C/W	2.4 V	86 lm/W	0606, 1616 Metric	250 mA	33 lm	0.063 in	1.6 mm	0.063 in	1.6 mm
Cree LED XQARDO-00-0000-000000Y02	SMD	Red-Orange	615 nm	610 nm	0.068 "	1.73 mm	175 mA	110 °	Surface Mount	18 °C/W	2.4 V	86 lm/W	0606, 1616 Metric	250 mA	33 lm	0.063 in	1.6 mm	0.063 in	1.6 mm	613 nm
Cree LED XQARDO-00-0000-000000Y03	SMD	Red-Orange			0.068 "	1.73 mm	175 mA	110 °	Surface Mount	18 °C/W	2.4 V	86 lm/W	0606, 1616 Metric	250 mA	33 lm	0.063 in	1.6 mm	0.063 in	1.6 mm	618 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Xlamp® XQ-A Red-Orange 615nm (610nm ~ 620nm) 0606 (1616 Metric)
