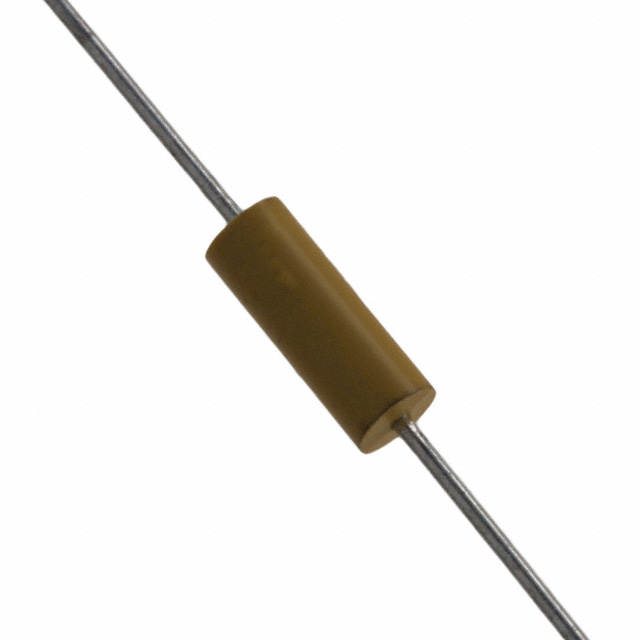

M39014/05-2861

Active

KEMET

CAP CER 10000PF 100V 10% AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 100V 10% AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Rated	Capacitance	Failure Rate	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Lead Style	Tolerance	Applications	Mounting Type
KEMET M39014/05-2227	BX	-55 °C	125 °C	Axial	100 V	270 pF	S (0.001%)	0.09 in	2.29 mm	0.16 in	4.06 mm	Straight	10 %	High Reliability	Through Hole
KEMET M39014/05-2849	BX	-55 °C	125 °C	Axial	100 V	4700 pF	P	0.09 in	2.29 mm	0.16 in	4.06 mm	Straight	10 %	High Reliability	Through Hole
KEMET M39014/05-2248	BX	-55 °C	125 °C	Axial	100 V	3900 pF	S (0.001%)	0.09 in	2.29 mm	0.16 in	4.06 mm	Straight	10 %	High Reliability	Through Hole
KEMET M39014/05-2861	BX	-55 °C	125 °C	Axial	100 V	10000 pF	P	0.09 in	2.29 mm	0.25 "	6.35 mm	Straight	10 %	High Reliability	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 pF ±10% 100V Ceramic Capacitor BX Axial

Technical documentation and resources
