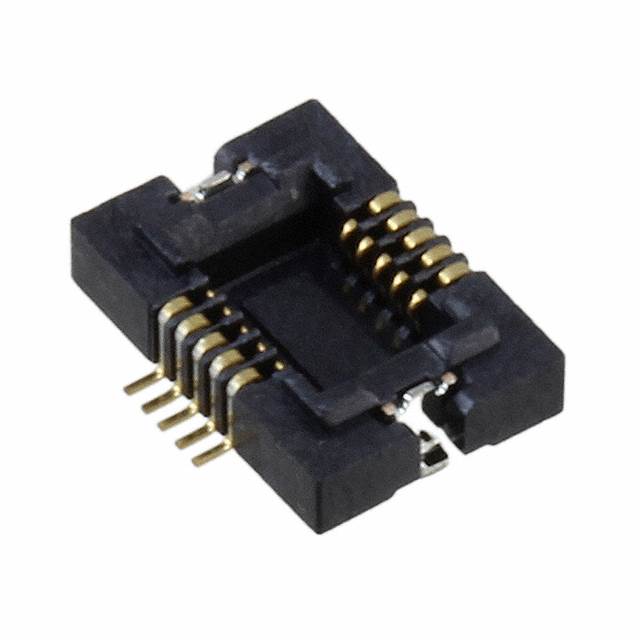

AXK710127G
ObsoletePanasonic Electric Works
CONN SOCKET 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK710127G
ObsoletePanasonic Electric Works
CONN SOCKET 10POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK710127G |
|---|---|
| Connector Type | Center Strip, Socket, Outer Edge Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.059 in |
| Height Above Board | 1.5 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.61 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| Digi-Reel® | 1 | $ 1.61 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
Description
General part information
AXK710 Series
10 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
