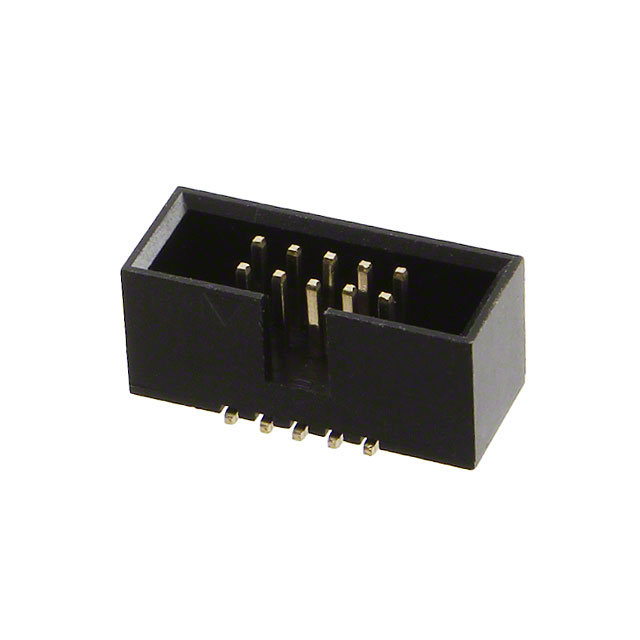

3220-10-0300-00

Active

CnC Tech, LLC

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet +2

3220-10-0300-00

Active

CnC Tech, LLC

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

DocumentsSoldering Guide 3X10,3X20,3221 Series Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3220-10-0300-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

3220-10 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Height	Insulation Height [z]	Mounting Type	Connector Type	Insulation Material	Voltage Rating	Style	Shrouding	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Shape	Contact Type	Material Flammability Rating	Insulation Height [z]	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish - Post
CnC Tech, LLC 3220-10-0100-99	2.03 µm	80 µin	0.083 in	2.11 mm	0.05 in	1.27 mm	2	5.4 mm	0.213 in	Through Hole	Header	Nylon 6T Polyamide (PA6T)	50 VAC	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	10	-40 °C	105 ░C	Solder	All	Keying Slot	0.05 in	1.27 mm	Brass	Square	Male Pin	UL94 V-0
CnC Tech, LLC 3220-10-0200-00			0.083 in	2.11 mm	0.05 in	1.27 mm	2		0.201 "	Through Hole Right Angle	Header	Nylon 9T Polyamide (PA9T)	50 VAC	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	10	-40 °C	105 ░C	Solder	All	Keying Slot	0.05 in	1.27 mm	Brass	Square	Male Pin	UL94 V-0	5.1 mm	Gold	Black	Flash
CnC Tech, LLC 3220-10-0300-00					0.05 in	1.27 mm	2	5.4 mm	0.213 in	Surface Mount	Header	Nylon 9T Polyamide (PA9T)	50 VAC	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	10	-40 °C	105 ░C	Solder	All	Keying Slot	0.05 in	1.27 mm	Brass	Square	Male Pin	UL94 V-0		Gold	Black	Flash	Flash	Gold
CnC Tech, LLC 3220-10-0100-00			0.083 in	2.11 mm	0.05 in	1.27 mm	2	5.4 mm	0.213 in	Through Hole	Header	Nylon 9T Polyamide (PA9T)	50 VAC	Board to Cable/Wire	Shrouded - 4 Wall	Push-Pull	10	-40 °C	105 ░C	Solder	All	Keying Slot	0.05 in	1.27 mm	Brass	Square	Male Pin	UL94 V-0		Gold	Black	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.54
		10	$ 0.45
		80	$ 0.41
		440	$ 0.33
		3200	$ 0.33

Description

General part information

3220-10 Series

Connector Header Surface Mount 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Soldering Guide 3X10,3X20,3221 Series

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet

IDC Header Mating Guide

Datasheet
