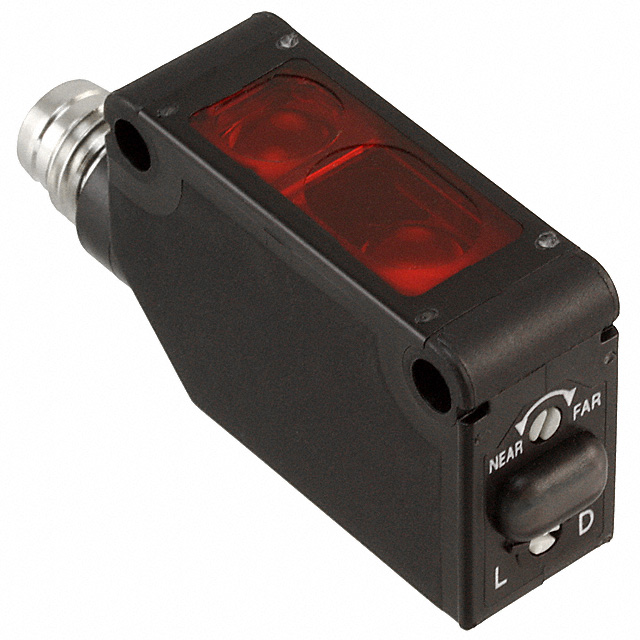

CX-442-Z
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 300MM NPN OPEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX-442-Z |
|---|---|
| Connection Method | 4POS, Connector, M8 |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 300 mm, 20 mm |
| Sensing Distance [Max] | 11.811 in |
| Sensing Distance [Min] | 0.787 " |
| Sensing Method | Reflective |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 108.00 | |
| 10 | $ 98.18 | |||
Description
General part information
CX-442 Series
Reflective Optical Sensor 0.787" ~ 11.811" (20mm ~ 300mm) NPN - Open Collector
