BC4S-S10-D

Active

Panduit Corp

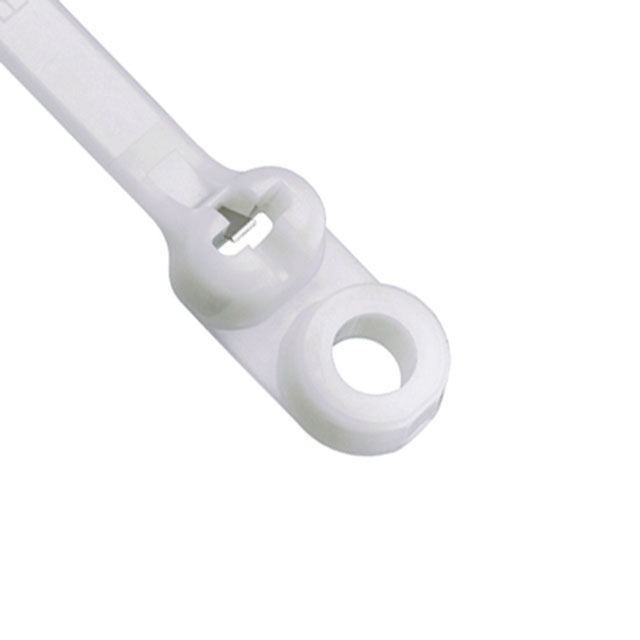

DOME-TOP BARB TY CLAMP TIE, 15.6", STANDARD, NYLON 6.6, NATURAL, SCREW HOLE SIZE #10 (M5) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

DOME-TOP BARB TY CLAMP TIE, 15.6", STANDARD, NYLON 6.6, NATURAL, SCREW HOLE SIZE #10 (M5) ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Natural 4.00" (101.60mm) 0.185" (4.70mm) 50 lbs (22.68 kg)

Technical documentation and resources

No documents available

Specification	BC4S-S10-D	BC4S Series

Bundle Diameter [diameter]	4 in	4 in
Bundle Diameter [diameter]	101.6 mm	101.6 mm
Color	Natural	Natural, Black
Features	-	Heat Stabilized, Weather Resistant
Length - Actual [x]	1.299 ft	1.299 ft
Length - Actual [x]	396 mm	396 mm
Length - Approximate [x]	15.5 "	15.5 "
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Mounting Hole, Screw Mount	Mounting Hole, Screw Mount
Tensile Strength	22.68 kg	22.68 kg
Tensile Strength	50 lbs	50 lbs
Width [x]	4.7 mm	4.7 mm
Width [x]	0.185 in	0.185 in
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

Part	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Length - Approximate [x]	Mounting Type	Width [x]	Width [x]	Tensile Strength	Tensile Strength	Material	Color	Length - Actual [x]	Length - Actual [x]	Features
Panduit Corp BC4S-S10-D	4 in	101.6 mm	Locking, Standard	15.5 "	Mounting Hole, Screw Mount	4.7 mm	0.185 in	22.68 kg	50 lbs	Polyamide (PA66), Nylon 6/6	Natural	1.299 ft	396 mm
Panduit Corp BC4S-S10-D30	4 in	101.6 mm	Locking, Standard	15.5 "	Mounting Hole, Screw Mount	4.7 mm	0.185 in	22.68 kg	50 lbs	Polyamide (PA66), Nylon 6/6	Black	1.299 ft	396 mm	Heat Stabilized, Weather Resistant
Panduit Corp BC4S-S10-D0	4 in	101.6 mm	Locking, Standard	15.5 "	Mounting Hole, Screw Mount	4.7 mm	0.185 in	22.68 kg	50 lbs	Polyamide (PA66), Nylon 6/6	Black	1.299 ft	396 mm	Weather Resistant
