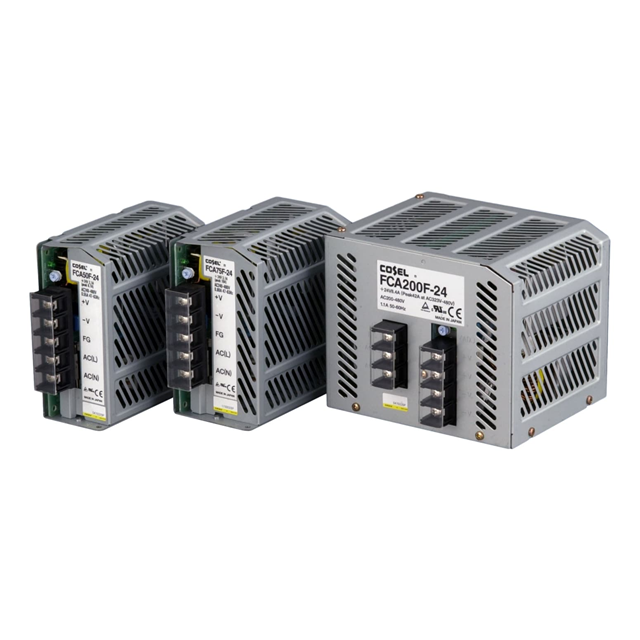

FCA200F-24

Cosel USA, Inc.

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Cosel USA, Inc.

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Number of Outputs	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Voltage - Isolation	Approval Agency	Input Type	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Min) [Min]
Cosel USA, Inc. FCA200F-24-C	DC Input Capable	Conformal Coated Enclosed	528 VAC 530 VDC	187 VAC 265 VDC	ITE (Commercial)	8.4 A	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	24 V	1	Chassis Mount	-10 °C	60 °C	200 W	81 %	3000 V	CE cURus TUV
Cosel USA, Inc. FCA200F-24-N1					ITE (Commercial)		5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	24 V	1		-10 °C	60 °C	200 W	81 %	3000 V	CE cURus TUV	AC or DC	8.4 A	530 V	187 VAC	528 VAC	265 V
Cosel USA, Inc. FCA200F-24	DC Input Capable	Enclosed	528 VAC 530 VDC	187 VAC 265 VDC	ITE (Commercial)	8.4 A	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	24 V	1	Chassis Mount	-10 °C	60 °C	200 W	81 %	3000 V	CE cURus TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 480.91

General part information

Enclosed AC DC Converters 1 Output 24V 187 ~ 528 VAC, 265 ~ 530 VDC Input

Technical documentation and resources
