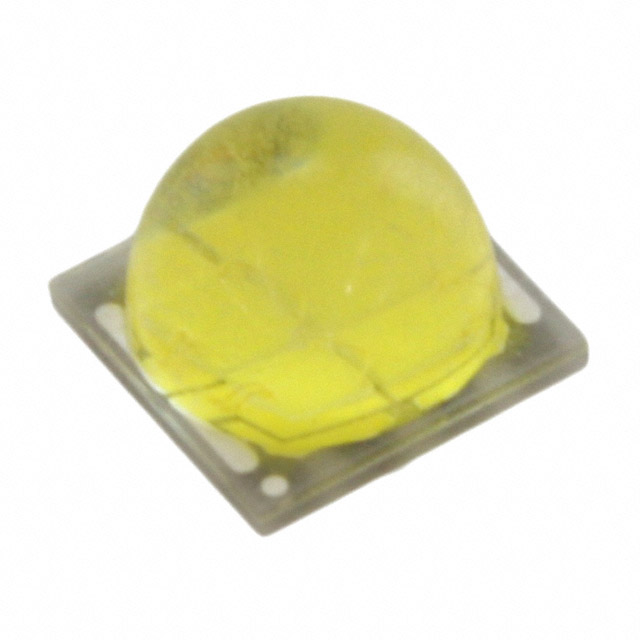

ELYI-K52C5-0LPGS-P6500

Active

Everlight Electronics Co Ltd

LED YI COOL WHT 6500K 70CRI 8SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED YI COOL WHT 6500K 70CRI 8SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELYI-K52C5-0LPGS-P6500

CCT (K)	6500 K
CCT (K) [Max]	7050 K
CCT (K) [Min]	6020 K
Color	Cool, White
CRI (Color Rendering Index)	70
Current - Max [Max]	1 A
Flux @ 25°C, Current - Test [Max]	350 lm
Flux @ 25°C, Current - Test [Min]	325 lm
Flux @ 85°C, Current - Test	309 lm
Height - Seated (Max) [Max] [z]	4.43 mm
Height - Seated (Max) [Max] [z]	0.174 in
Lumens/Watt @ Current - Test	66 lm/W
Mounting Type	Surface Mount
Package / Case	2424 (6060 Metric)
Size / Dimension [x]	0.236 in
Size / Dimension [x]	6 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Thermal Resistance of Package [custom]	6 °C/W
Viewing Angle	105 °
Voltage - Forward (Vf) (Typ)	7 V

Part	Flux @ 85°C, Current - Test	Package / Case	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	Viewing Angle	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	CCT (K) [Max]	CCT (K) [Min]	CCT (K)	Lumens/Watt @ Current - Test
Everlight Electronics Co Ltd ELYI-K52C5-0LPGS-P6500	309 lm	2424 (6060 Metric)	Cool White	4.43 mm	0.174 in	Surface Mount	325 lm	350 lm	7 V	6 °C/W	105 °	1 A	70	0.236 in	6 mm	0.236 in	6 mm	7050 K	6020 K	6500 K	66 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Yi White, Cool 6500K (6020K ~ 7050K) 7V 700mA 105° 2424 (6060 Metric)
