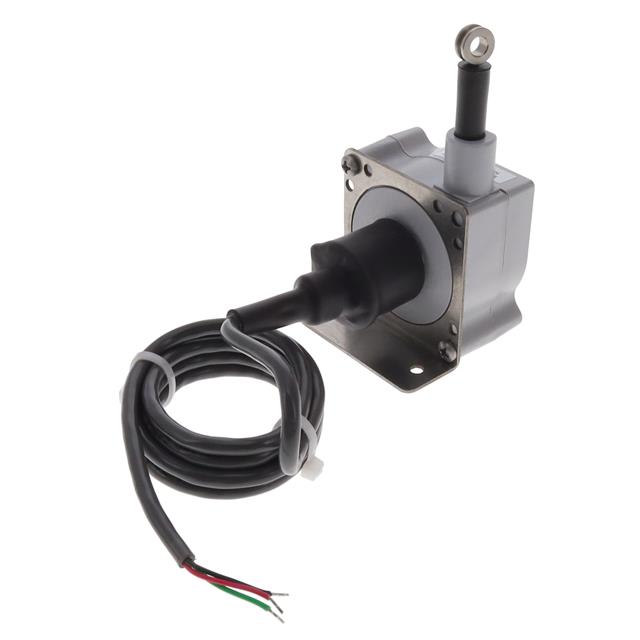

SP3-12

Active

TE Connectivity Measurement Specialties

POT STRING 12.5 INCH

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

POT STRING 12.5 INCH

Technical Specifications

Parameters and characteristics for this part

POT STRING 12.5 INCH

Part	Actuator Type	Package / Case	Linearity	Linear Range [Max]	Linear Range [Min]	Linear Range [Min]	Linear Range [Max]	For Measuring	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Output [Min]	Output [Max]
TE Connectivity Measurement Specialties SP3-12	String Potentiometer	Box with Connector	0.25 %	1270 mm	0 in	0 mm	50 in	Linear Position	Chassis Mount	-18 °C	71 °C	8 V, 12 V	32 VDC, 40 VDC	Wire Leads	0 mV, 4 mA	10 V, 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Linear Position String Potentiometer Wire Leads
