1-1337551-0

Active

TE Connectivity AMP Connectors

CONN FME JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN FME JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337551-0

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	FME
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms

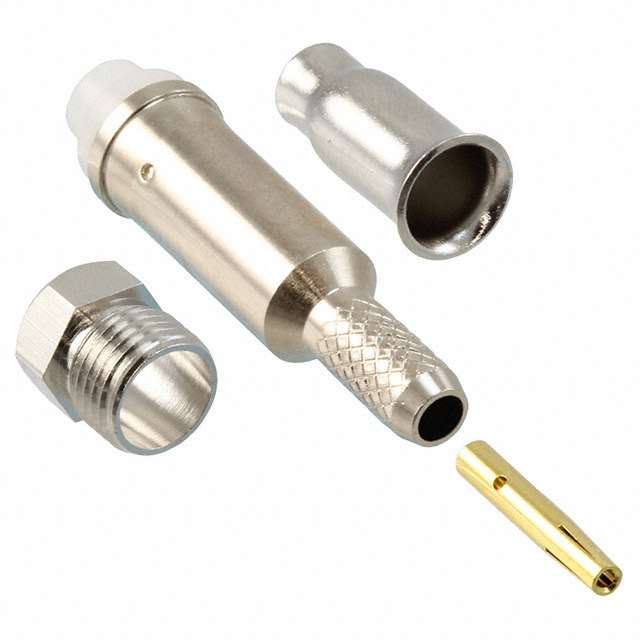

Includes	Contact, Nut, Connector, Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	100 V

CONN FME JACK STR 50 OHM SOLDER

Part	Includes	Number of Ports	Center Contact Material	Housing Color	Mating Cycles	Body Material	Connector Type	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Impedance	Center Contact Plating	Connector Style	Mounting Type	Frequency - Max [Max]	Shield Termination	Insertion Loss	Cable Group	Contact Termination
TE Connectivity AMP Connectors 1-1337551-0	Connector, Contact, Ferrule, Nut	1	Brass	Silver	500	Brass	Female Socket, Jack	Nickel	Polyoxymethylene (POM) Acetal	85 °C	-55 °C	100 V	50 Ohms	Gold	FME	Free Hanging (In-Line)	2 GHz	Crimp	0.2 dB	188A, 316, RG-174A	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FME Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
