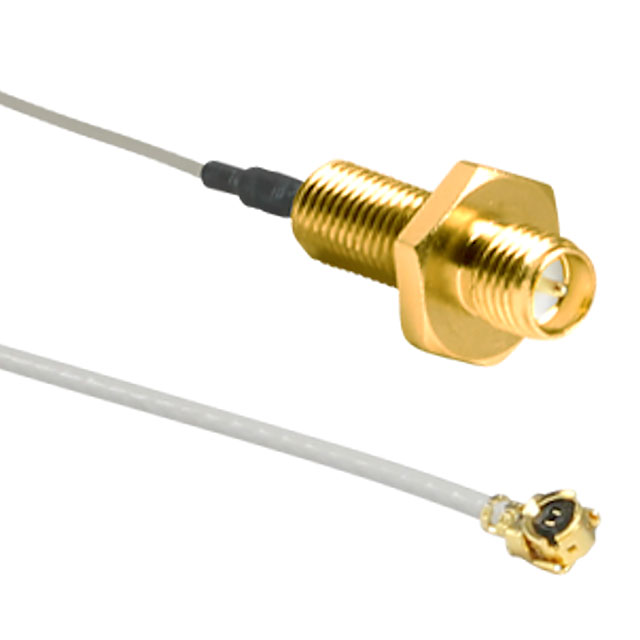

CSI-RGFE-200-UFFR-B

Unknown

TE Connectivity Linx

CBL ASSY U.FL-RPSMA JK-PL 7.874"

Search across all available documentation for this part.

Unknown

TE Connectivity Linx

CBL ASSY U.FL-RPSMA JK-PL 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CSI-RGFE-200-UFFR-B

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Rear Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Frequency - Max [Max]	3 GHz
Length	7.874 in
Length	200 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

Part	1st Connector	1st Connector Mounting Type	1st Connector Mounting Feature	Cable Type	Style	Frequency - Max [Max]	2nd Connector	2nd Contact Gender	Overall Impedance	Length [x]	Length [x]	2nd Connector Mounting Type	1st Contact Gender	Color	Length	Length
TE Connectivity Linx CSI-RGFE-300-UFFR-B	RP-SMA Jack	Panel Mount	Bulkhead - Rear Side Nut	1.13mm OD Coaxial Cable	U.FL (UMCC) to RP-SMA	3 GHz	U.FL (UMCC) Plug Right Angle	Female	50 Ohms	300 mm	11.811 in	Free Hanging (In-Line)	Male	Gray
TE Connectivity Linx CSI-RGFE-200-UFFR	RP-SMA Jack	Panel Mount	Bulkhead - Rear Side Nut	1.13mm OD Coaxial Cable	U.FL (UMCC) to RP-SMA	3 GHz	U.FL (UMCC) Plug Right Angle	Female	50 Ohms			Free Hanging (In-Line)	Male	Gray	7.874 in	200 mm
TE Connectivity Linx CSI-RGFE-200-UFFR-B	RP-SMA Jack	Panel Mount	Bulkhead - Rear Side Nut	1.13mm OD Coaxial Cable	U.FL (UMCC) to RP-SMA	3 GHz	U.FL (UMCC) Plug Right Angle	Female	50 Ohms			Free Hanging (In-Line)	Male	Gray	7.874 in	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.13mm OD Coaxial Cable 7.874" (200.00mm)
