BGC880N0000152A000

Active

TE Intercontec

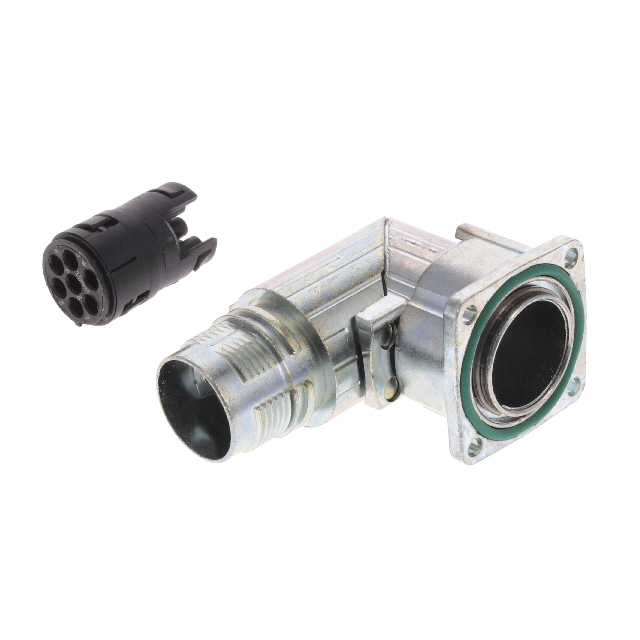

CONN RCPT HSG MALE 7P PNL MT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 7P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	BGC880N0000152A000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Includes	1 Backshell, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M17-7
Shielding	Unshielded
Type	For Male Pins

Part	Material Flammability Rating	Housing Color	Features	Includes	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Orientation	Mounting Type	Number of Positions	Shell Size - Insert	Ingress Protection	Insert Material	Contact Shape	Shell Material	Note	Shielding	Shell Finish	Type
TE Intercontec BGC880N0000152A000	UL94 V-0	Silver	Backshell Rotatable	1 Backshell 1 Connector 1 O-Ring	Flange	-20 C	130 °C	Receptacle Housing	Push-Twist	Keyed	Panel Mount Right Angle	7	M17-7	IP66/IP67	Polybutylene Terephthalate (PBT)	Circular	Zinc Die Cast	Contacts Not Included	Unshielded	Chromate	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
