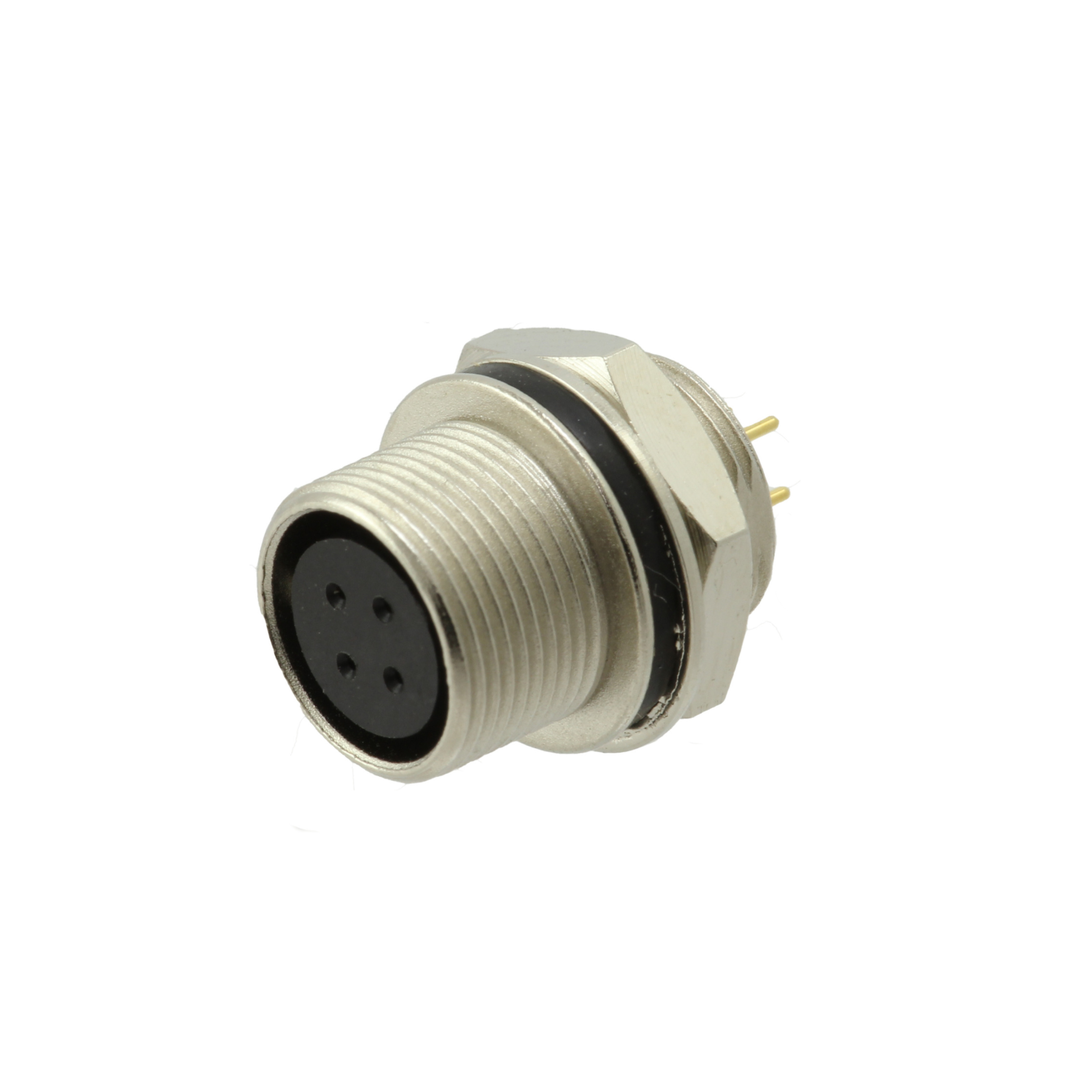

SD-PNL04-FFTRH-PX0-000

Obsolete

Adam Tech

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

Adam Tech

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PNL04-FFTRH-PX0-000

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA46), Nylon 4/6
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-4
Shielding	Unshielded
Termination	Solder

Part	Mounting Feature	Mounting Type	Color	Ingress Protection	Termination	Shell Material	Shell Size - Insert	Shielding	Insert Material	Connector Type	Orientation	Contact Finish - Mating	Shell Finish	Contact Material	Contact Finish Thickness - Mating	Number of Positions	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Material Flammability Rating
Adam Tech SD-PNL04-FFTRH-PX0-000	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Silver	IP67 - Dust Tight Waterproof	Solder	Zinc Alloy	M8-4	Unshielded	Polyamide (PA46) Nylon 4/6	Receptacle Female Sockets	Keyed	Gold	Nickel	Brass	Flash	4	Metal
Adam Tech SD-PNL04-MMTAL-SX0-000		Free Hanging (In-Line)	Black Silver	IP67 - Dust Tight Waterproof		Zinc Alloy	M8-4	Unshielded	Polyamide (PA46) Nylon 4/6	Male Pins Plug	Keyed	Gold	Nickel	Brass		4	Metal	4.6 mm	0.181 in	Backshell Cable Clamp Strain Relief	10 çin	0.25 çm	Brass Nickel	UL94 V-0
