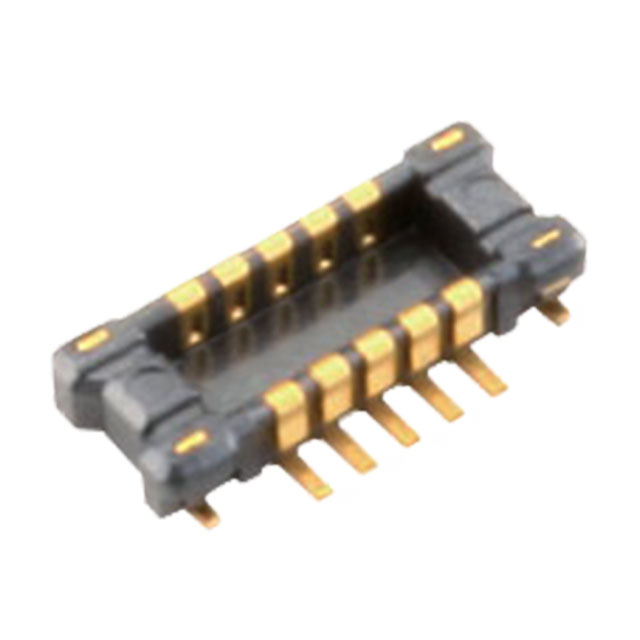

AXF6A1012
ActivePanasonic Electric Works
CONN HDR 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXF6A1012
ActivePanasonic Electric Works
CONN HDR 10POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXF6A1012 |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.51 | |||
| Tape & Reel (TR) | 5000 | $ 0.48 | ||
| 10000 | $ 0.45 | |||
| 15000 | $ 0.44 | |||
Description
General part information
AXF6A1 Series
10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
