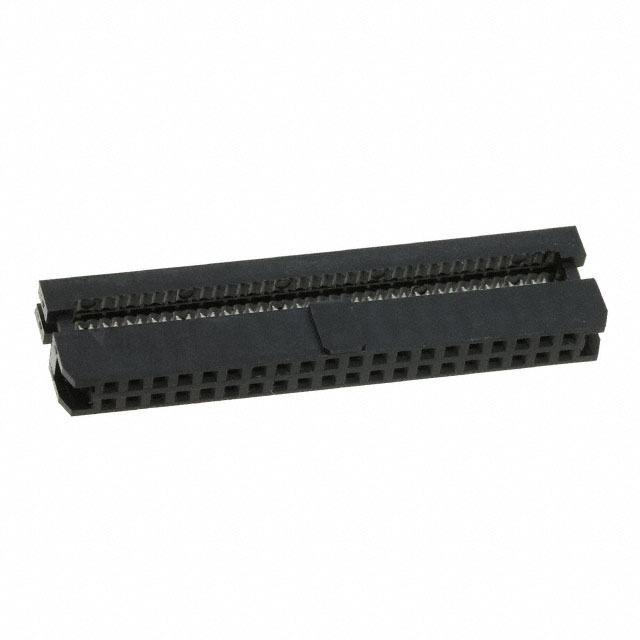

AWP2 40-7240
ActiveAssmann WSW Components
CONN SOCKET 40POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWP2 40-7240
ActiveAssmann WSW Components
CONN SOCKET 40POS IDC GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWP2 40-7240 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.97 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.81 | |||
| 60 | $ 0.79 | |||
| 120 | $ 0.76 | |||
| 240 | $ 0.68 | |||
| 480 | $ 0.63 | |||
Description
General part information
AWP2 40 Series
40 Position Rectangular Socket Connector IDC Gold
