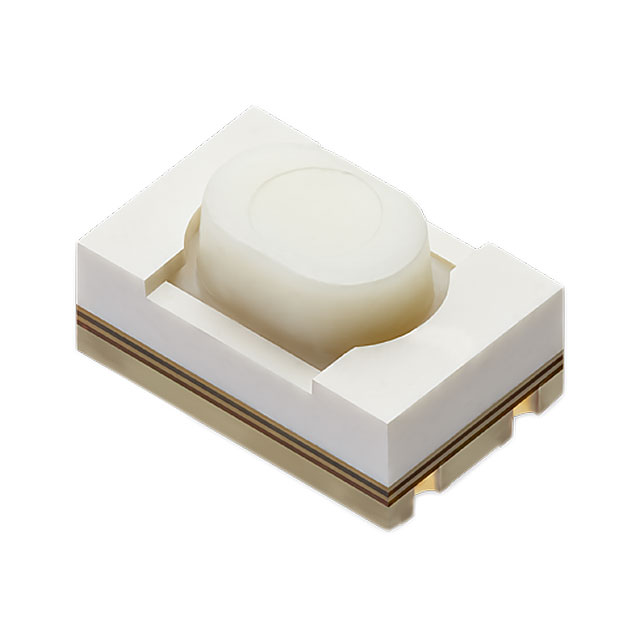

LS8J6M-T

Obsolete

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Obsolete

Citizen

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LS8J6M-T

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Oval Button
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	530 gf
Outline [x]	4.9 mm
Outline [y]	3.2 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	SMD (SMT) Tab

SWITCH TACTILE SPST-NO 0.02A 12V

Part	Contact Rating @ Voltage	Operating Force	Outline [x]	Outline [y]	Actuator Orientation	Termination Style	Circuit	Switch Function	Actuator Height off PCB, Vertical [z]	Mechanical Life	Mounting Type	Illumination	Switch Travel	Actuator Type
Citizen LS8J6M-T	0.02 A, 12 VDC	530 gf	4.9 mm	3.2 mm	Top Actuated	SMD (SMT) Tab	SPST-NO	Off-Mom	2.5 mm	100000 Cycles	Surface Mount	Non-Illuminated	0.2 mm	Oval Button

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
