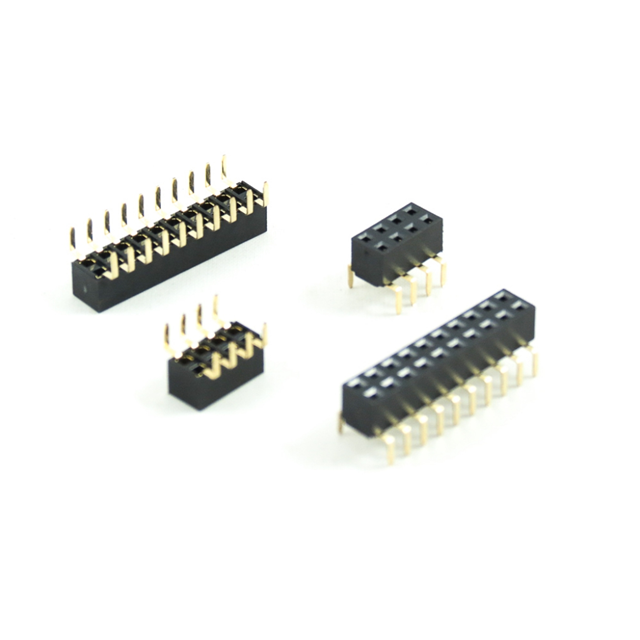

2048-2X03G00EU

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 6 PINS,

Search across all available documentation for this part.

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 6 PINS,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2048-2X03G00EU	2048 Series

	-	-
Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6 - 20
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

PCB SOCKET, DOUBLE ROW, 14 PIN,

Part	Contact Finish - Post	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Connector Type	Current Rating (Amps)	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Finish Thickness - Post	Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Material	Number of Rows	Material Flammability Rating	Contact Shape	Contact Finish - Mating
Oupiin 2048-2X07G00EU	Gold	Flash	2.54 mm	0.1 in	All	3.2 mm	0.126 in	Socket	2 A	14	Solder	0.1 in	2.54 mm	0.197 in	5 mm	Push-Pull	Flash	Female Socket	Copper Alloy	105 ░C	-55 °C	Through Hole	Glass Filled, Polyester, Thermoplastic	2	UL94 V-0	Square	Gold
Oupiin 2048-2X10G00EU	Gold	Flash	2.54 mm	0.1 in	All	3.2 mm	0.126 in	Socket	2 A	20	Solder	0.1 in	2.54 mm	0.197 in	5 mm	Push-Pull	Flash	Female Socket	Copper Alloy	105 ░C	-55 °C	Through Hole	Glass Filled, Polyester, Thermoplastic	2	UL94 V-0	Square	Gold
Oupiin 2048-2X03G00EU	Gold	Flash	2.54 mm	0.1 in	All	3.2 mm	0.126 in	Socket	2 A	6	Solder	0.1 in	2.54 mm	0.197 in	5 mm	Push-Pull	Flash	Female Socket	Copper Alloy	105 ░C	-55 °C	Through Hole	Glass Filled, Polyester, Thermoplastic	2	UL94 V-0	Square	Gold
Oupiin 2048-2X13G00DU
Oupiin 2048-1X03G00BU	Gold	Flash			All	3.2 mm	0.126 in	Socket	2 A		Solder	0.1 in	2.54 mm	0.197 in	5 mm	Push-Pull	Flash	Female Socket	Copper Alloy	105 ░C	-55 °C	Through Hole	Glass Filled, Polyester, Thermoplastic	1	UL94 V-0	Square	Gold
