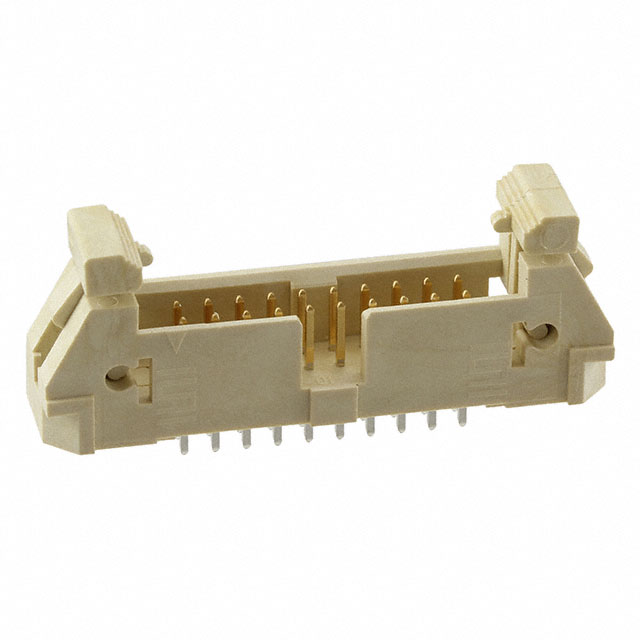

EJH-110-02-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet EJH Datasheet +1

EJH-110-02-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet EJH Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EJH-110-02-L-D-TH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.225 in
Contact Length - Mating	5.72 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Natural
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EJH-110 Series

Headers & Wire Housings .100" Shrouded IDC Ejector Header

Part	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions	Number of Positions Loaded	Shrouding	Insulation Color	Insulation Material	Number of Rows	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Style	Features	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. EJH-110-01-L-D-SM	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20	All	Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold
Samtec Inc. EJH-110-02-S-D-RA-15	Tin			Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Natural	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze			3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Through Hole Right Angle	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19	0.09 "	2.29 mm	9.91 mm	0.39 in
Samtec Inc. EJH-110-01-S-D-SM-LC-17	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze			3 A	0.1 in	2.54 mm	Board to Cable/Wire	Board Lock Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19
Samtec Inc. EJH-110-01-F-D-RA-01	Tin			Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	3 µin	0.076 µm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Through Hole Right Angle	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19	0.09 "	2.29 mm	9.91 mm	0.39 in
Samtec Inc. EJH-110-01-FM-D-SM	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20	All	Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	3 µin	0.076 µm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold
Samtec Inc. EJH-110-02-L-D-TH	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20	All	Shrouded - 4 Wall	Natural	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	10 çin	0.25 çm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Through Hole	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold						0.12 in	3.05 mm
Samtec Inc. EJH-110-01-S-D-SM-LC-19	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze			3 A	0.1 in	2.54 mm	Board to Cable/Wire	Board Lock Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19
Samtec Inc. EJH-110-01-F-D-SM-20	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	3 µin	0.076 µm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19
Samtec Inc. EJH-110-01-S-D-SM-12	Tin	0.5 in	12.7 mm	Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20		Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze			3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Surface Mount	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold	19
Samtec Inc. EJH-110-01-F-D-RA	Tin			Latch Lock/Eject Hooks	0.225 in	5.72 mm	Square	20	All	Shrouded - 4 Wall	Black	Liquid Crystal Polymer (LCP)	2	Solder	Phosphor Bronze	3 µin	0.076 µm	3 A	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	Header	Through Hole Right Angle	-55 °C	125 °C	Male Pin	2.54 mm	0.1 in	Gold		0.09 "	2.29 mm	9.91 mm	0.39 in
