R85049/93-18

Active

TE Connectivity Aerospace, Defense and Marine

CONN BANDING SPLIT-RING 18

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R85049/93-18

Active

TE Connectivity Aerospace, Defense and Marine

CONN BANDING SPLIT-RING 18

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.34
		10	$ 5.39
		25	$ 5.05
		50	$ 4.81
		100	$ 4.58
		250	$ 4.29
		500	$ 4.09
		1000	$ 3.89
		2500	$ 3.65

Description

General part information

R85049 Series

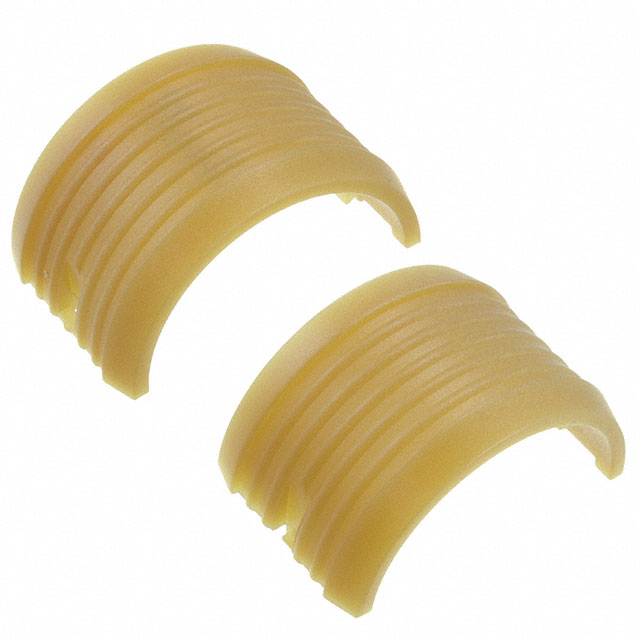

Connector Split-Ring, Banding 18

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R85049/93-18	R85049 Series

	-	-
Accessory Type	Banding, Split-Ring	Termination Band, Banding, Split-Ring
Cable Exit	-	90 - 180 °
Cable Opening	-	6.35 - 47.98 mm
Cable Opening	-	0.25 - 1.889 in
Cable Opening	-	7.9 - 17.48 mm
Cable Opening	-	0.311 - 0.688 in
Color	-	Black, Silver, Olive Drab
Diameter - Outside	-	0.75 - 1.889 in
Diameter - Outside	-	1.406 - 47.98 mm
Diameter - Outside	-	35.71 mm
Features	-	Self Locking, Flat
For Use With/Related Products	Banding Backshells and Braid Socks	MIL-DTL-38999 Series III, IV, M85049/88 Circular Shrink Boot Adapter, Banding Backshells and Braid Socks
Grade	Military	Military
Includes	-	1 O-Ring, 1 Backshell
Material	-	Aluminum, Aluminum Alloy
Plating	-	Zinc Nickel, Electroless Nickel, Cadmium
Qualification	SAE AS 85049	SAE AS 85049
Shell Size - Insert	18	4 - 25
Shell Size - Insert	-	D, G, C, J, 17, E, H, F
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	-	Shielded
Thread Size	-	M37x1
Type	-	Banding, Backshell

R85049 Series

CONN BACKSHELL BANDING SZD BLACK

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Color	Shielding	Shell Size - Insert	Material	Type	Cable Exit	Plating	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Includes	Qualification	Grade	Accessory Type
TE Connectivity Aerospace, Defense and Marine R85049/90-15Z03	1.279 in	32.49 mm	Self Locking	Black	Shielded	D	Aluminum	Backshell, Banding	90 °	Zinc Nickel	14.27 mm	0.562 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/88-21Z02	1.642 in	41.71 mm	Self Locking	Black	Shielded	G	Aluminum	Backshell, Banding	180 °	Zinc Nickel	15.88 mm	0.625 in	MIL-DTL-38999 Series III, IV	21	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/85-16Z02
TE Connectivity Aerospace, Defense and Marine R85049/90-21Z03	1.642 in	41.71 mm	Self Locking	Black	Shielded	G	Aluminum	Backshell, Banding	90 °	Zinc Nickel	20.62 mm	0.812 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/88-13Z02	1.157 "	29.39 mm	Self Locking	Black	Shielded	C	Aluminum	Backshell, Banding	180 °	Zinc Nickel	7.92 mm	0.312 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/128-1			Flat	Silver									M85049/88 Circular Shrink Boot Adapter			SAE AS 85049	Military	Termination Band
TE Connectivity Aerospace, Defense and Marine R85049/88-15Z03	1.279 in	32.49 mm	Self Locking	Black	Shielded	D	Aluminum	Backshell, Banding	180 °	Zinc Nickel	14.27 mm	0.562 in	MIL-DTL-38999 Series III, IV	15	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/88-25N03	1.889 in	47.98 mm	Self Locking	Silver	Shielded	J	Aluminum	Backshell, Banding	180 °	Electroless Nickel	25.4 mm	1 in	MIL-DTL-38999 Series III, IV	25	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/85-22Z02
TE Connectivity Aerospace, Defense and Marine R85049/128-5			Flat	Silver									M85049/88 Circular Shrink Boot Adapter					Termination Band
