CSJ-38-70010

Obsolete

TE Connectivity Potter & Brumfield Relays

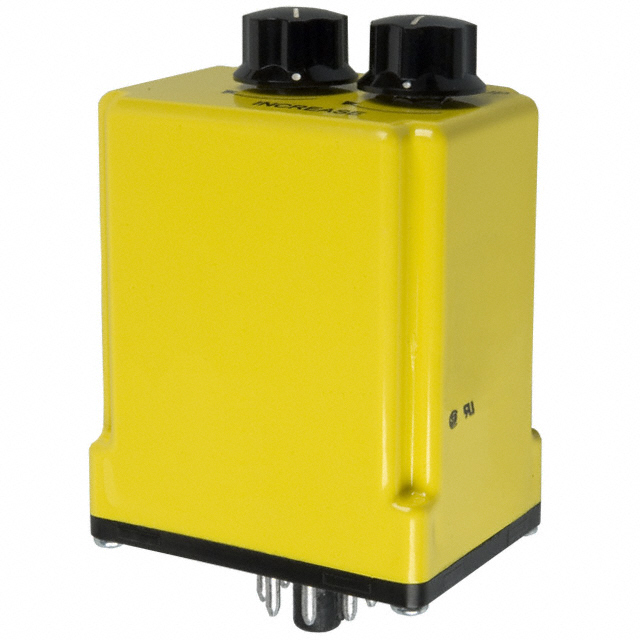

RELAY GEN PURPOSE DPDT 10A 120V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	CSJ-38-70010

Approval Agency	CSA, UR
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	10 A
Load - Max Switching	280 W, 1200 VA
Mounting Type	Socketable
Must Operate Voltage	Adjustable
Must Release Voltage	Adjustable
Operate Time	25 ms
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Relay Type	General Purpose
Switching Voltage	120 VAC, 28 VDC
Termination Style	Plug In, 8 Pin (Octal)

Part	Coil Voltage	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Contact Rating (Current)	Coil Type	Termination Style	Operate Time	Switching Voltage	Approval Agency	Relay Type	Mounting Type	Must Operate Voltage	Must Release Voltage	Load - Max Switching	Contact Form
TE Connectivity Potter & Brumfield Relays CSJ-38-70017	120 VAC	55 °C	-10 °C	10 A	Non Latching	Plug In 8 Pin (Octal)	25 ms	28 VDC 120 VAC	CSA UR	General Purpose	Socketable	Adjustable	Adjustable	280 W 1200 VA	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays CSJ-38-70010	120 VAC	55 °C	-10 °C	10 A	Non Latching	Plug In 8 Pin (Octal)	25 ms	28 VDC 120 VAC	CSA UR	General Purpose	Socketable	Adjustable	Adjustable	280 W 1200 VA	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
