FN1393-6-05-11

Active

Schaffner EMC Inc.

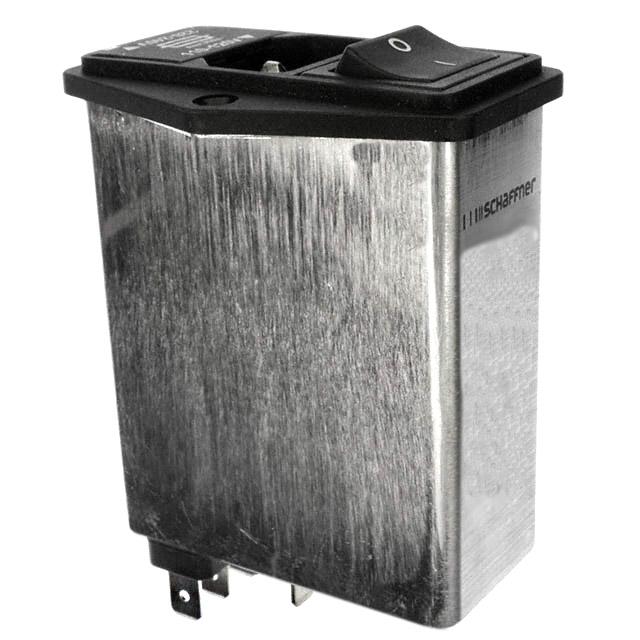

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FN1393-6-05-11	FN1393 Series

Accomodates a Fuse	True	True
Approval Agency	UL, ENEC, CSA	UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Filter	6 A	1 - 6 A
Features	Voltage Selector, Front or Rear Side Mount	Voltage Selector, Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm	29 mm
Panel Cutout Dimensions [y]	60 mm	60 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Termination	Termination	Termination	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse	Connector Style	Filter Type	Mounting Type	Ingress Protection	Material Flammability Rating	Connector Type	Switch Features	Current Rating - Filter	Fuse Holder, Drawer
Schaffner EMC Inc. FN1393-6-05-11	Front or Rear Side Mount, Voltage Selector	0.25 in	6.3 mm	Quick Connect	CSA, ENEC, UL	60 mm	29 mm		IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IP40	UL94 V-2	Receptacle, Male Blades - Module	Switch On-Off	6 A	Fuse Holder
Schaffner EMC Inc. FN1393-1-05-14	Front or Rear Side Mount, Voltage Selector	0.25 in	6.3 mm	Quick Connect	CSA, ENEC, UL	60 mm	29 mm		IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IP40	UL94 V-2	Receptacle, Male Blades - Module	Switch On-Off	1 A	Fuse Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
