PKG.M0.2SL.LG

Active

LEMO

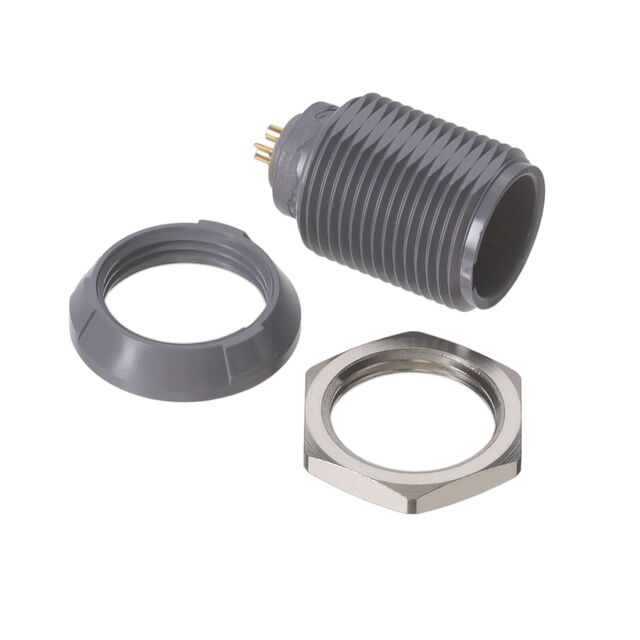

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKG.M0.2SL.LG

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.04
		10	$ 16.67
		25	$ 15.95
		50	$ 15.44
		100	$ 14.92
		250	$ 14.10
		500	$ 13.69

Description

General part information

PKG.M0 Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKG.M0.2SL.LG	PKG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Black, Gray, Red, White, Blue, Yellow, Green
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	10 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	2	2 - 9
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M02	M04, M06, M02, M08, M05, M09
Shielding	Unshielded	Unshielded
Termination	-	Solder, Crimp

PKG.M0 Series

CONN RCPT FMALE 4P GOLD SLDR CUP

...

Part	Fastening Type	Mounting Feature	Applications	Connector Type	Contact Finish - Mating	Shell Material	Number of Positions	Color	Orientation	Shielding	Primary Material	Shell Size - Insert	Insert Material	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination
LEMO PKG.M0.4TL.LZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	4	Black	G	Unshielded	Plastic	M04	Polyetheretherketone (PEEK)	IP50	8 A	-50 °C	170 °C
LEMO PKG.M0.6TL.LN	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Black	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C
LEMO PKG.M0.6SL.LG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Gray	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C
LEMO PKG.M0.7SL.NG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	7	Gray	G	Unshielded	Plastic		Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.2SL.NR	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	2	Gray, Red	G	Unshielded	Plastic	M02	Polyetheretherketone (PEEK)	IP50	10 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.8SL.LG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	8	Gray	G	Unshielded	Plastic	M08	Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C
LEMO PKG.M0.4GL.LB	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polysulfone (PSU)	4	Gray, White	G	Unshielded	Plastic	M04	Polyetheretherketone (PEEK)	IP50	8 A	-50 °C	150 °C
LEMO PKG.M0.8SL.MG	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	8	Gray	G	Unshielded	Plastic	M08	Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C		Crimp
LEMO PKG.M0.6SL.NZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	6	Gray	G	Unshielded	Plastic	M06	Polyetheretherketone (PEEK)	IP50	6 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
LEMO PKG.M0.7SL.NZ	Detent Lock, Push-Pull	Front and Rear Side Nut	Automotive, Industrial, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Gold	Polyetherimide (PEI)	7	Gray	G	Unshielded	Plastic		Polyetheretherketone (PEEK)	IP50	5 A	-50 °C	170 °C	Panel Mount, Through Hole	Solder
