A7VXB-2510G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AMU25B/AE25G/X
Deep-Dive with AI
Search across all available documentation for this part.
A7VXB-2510G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AMU25B/AE25G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7VXB-2510G | A7VXB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | - | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB25 | DB9, DB25, DB37, DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.10 | |
| 10 | $ 15.00 | |||
| 25 | $ 13.92 | |||
| 50 | $ 13.16 | |||
| 100 | $ 12.44 | |||
| 250 | $ 11.55 | |||
| 500 | $ 10.92 | |||
A7VXB Series
CABLE D-SUB - AMU09B/AE09G/X
| Part | Length | Length | Type | Number of Positions | 2nd Connector | Shielding | 1st Connector | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7VXB-0906G | 6 ft | 1.83 m | DB9 | 9 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | |
TE Connectivity AMP Connectors A7VXB-0906M | 6 ft | 1.83 m | DB9 | 9 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VXB-2506G | 6 ft | 1.83 m | DB25 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | ||
TE Connectivity AMP Connectors A7VXB-3710M | 10 ft | 3.05 m | DB37 | 37 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VXB-2510G | 10 ft | 3.05 m | DB25 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | ||
TE Connectivity AMP Connectors A7VXB-3706M | 6 ft | 1.83 m | DB37 | 37 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VXB-3710G | 10 ft | 3.05 m | DB37 | 37 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | |
TE Connectivity AMP Connectors A7VXB-3706G | 6 ft | 1.83 m | DB37 | 37 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | |
TE Connectivity AMP Connectors A7VXB-1510M | 10 ft | 3.05 m | DB15 | 15 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VXB-2510M | 10 ft | 3.05 m | DB25 | Individual Wire Leads | Unshielded | Plug, Male Pins | 0.76 Ám | 30 Áin | Gold | Multiple, Ribbon |
Description
General part information
A7VXB Series

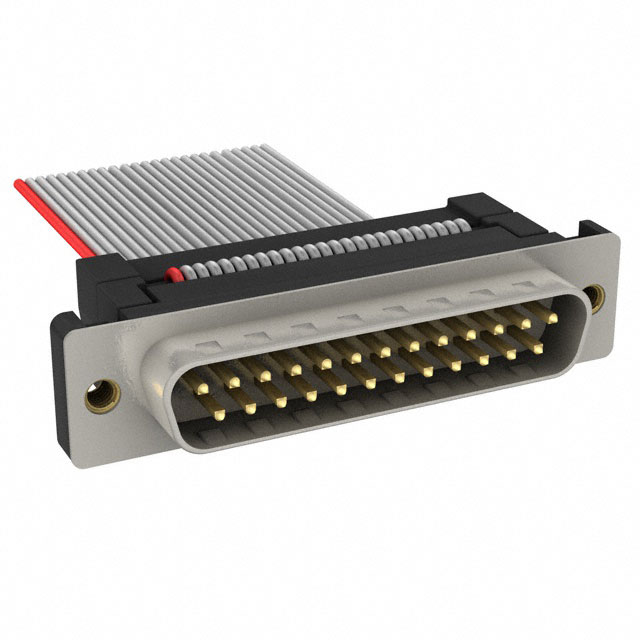

D-Sub Cable Assembly DB25 Gray, Ribbon 10.00' (3.05m) Plug, Male Pins to Individual Wire Leads Unshielded
