406-43-204-30-068001

Active

Mill-Max Manufacturing Corp.

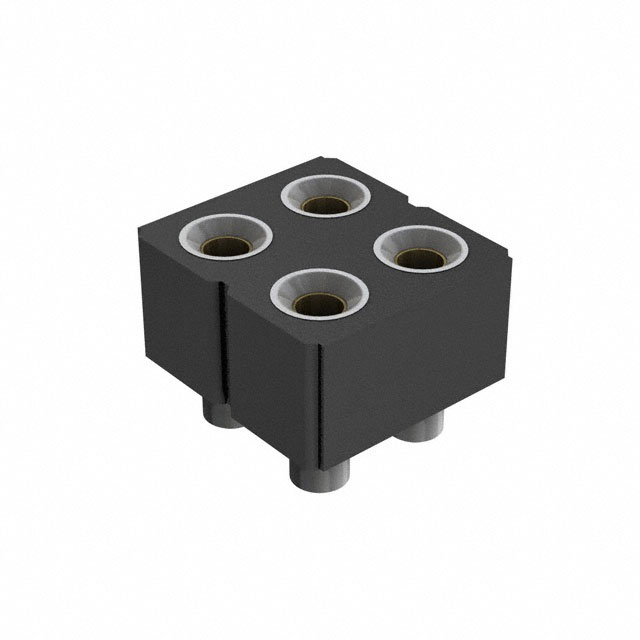

CONN RCPT 4POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

406-43-204-30-068001

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.1 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	406-43-204-30-068001

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

406-43 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Connector Type	Contact Type	Fastening Type	Number of Rows	Insulation Color	Number of Positions Loaded	Termination	Material Flammability Rating	Mounting Type	Number of Positions	Contact Material	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Finish - Post	Number of Positions
Mill-Max Manufacturing Corp. 406-43-213-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	13	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-216-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount		Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin	16
Mill-Max Manufacturing Corp. 406-43-205-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount		Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-215-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	15	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-212-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	12	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-220-30-068001	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	20	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-207-30-068000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	7	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin
Mill-Max Manufacturing Corp. 406-43-204-30-068001	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	Female Socket	Push-Pull	2	Black	All	Solder	UL94 V-0	Surface Mount	4	Beryllium Copper	Circular	Gold	-55 °C	125 °C	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	3 A	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.57
		10	$ 7.71
		100	$ 6.89
	Digi-Reel®	1	$ 8.57
		10	$ 7.71
		100	$ 6.89
	Tape & Reel (TR)	355	$ 4.61

Description

General part information

406-43 Series

4 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
