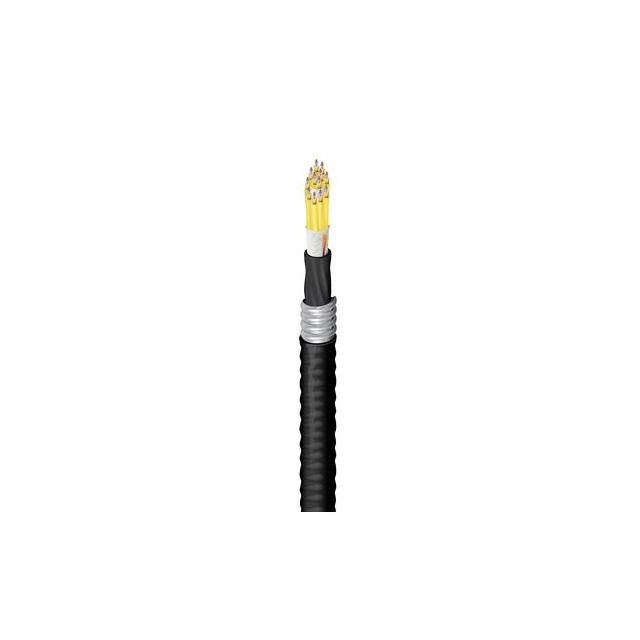

FDSD144FK

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FDSD144FK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	144 Fibers
Features	Armored
Jacket (Insulation) Diameter [diameter]	1.51 in
Jacket (Insulation) Diameter [diameter]	38.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Singlemode

Part	Jacket Color	Features	Features	Core Diameter [diameter]	Cladding Diameter [diameter]	Style	Tensile Strength	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Material	Type
Belden Inc. FDSD144PK	Black	Rip Cord	144 Fibers	9 µm	125 µm	Multiple Fibers	81.6 kg	1.065 in	27.05 mm	-40 °C	70 °C	OFNP	Poly-Vinyl Chloride (PVC)	Singlemode
Belden Inc. FDSD144LKY
Belden Inc. FDSD144FK	Black	Armored	144 Fibers	9 µm	125 µm	Multiple Fibers	81.6 kg	1.51 in	38.35 mm	-40 °C	70 °C	OFCR	Poly-Vinyl Chloride (PVC)	Singlemode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 13.11

General part information

Fiber Optic Cable Black Singlemode 125µm

Technical documentation and resources
