EB59A-03-A

Active

Adam Tech

EURO BLOCK 3P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 3P

Technical Specifications

Parameters and characteristics for this part

Specification	EB59A-03-A

Color	Gray
Contact Material - Plating [custom]	Tin Plated
Contact Material - Plating [custom]	Phosphor Bronze
Current	5 A
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole, Kinked Pin
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	3
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

Part	Voltage	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Color	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Mating Orientation	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Mounting Type	Current
Adam Tech EB59A-03-A	300 V	3.5 mm	0.138 in	22 AWG	17.5 AWG	1	Gray	Tin Plated	Phosphor Bronze	Horizontal with Board	Push-In Spring Screwless - Leg Spring	-40 °C	105 ░C	3	Kinked Pin Through Hole	5 A
Adam Tech EB59A-04-V	300 V	2.5 mm	0.098 in	28 AWG	20 AWG	1	Gray	Tin Plated	Phosphor Bronze	Horizontal with Board	Push-In Spring Screwless - Leg Spring	-40 °C	105 ░C	4	Kinked Pin Through Hole	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

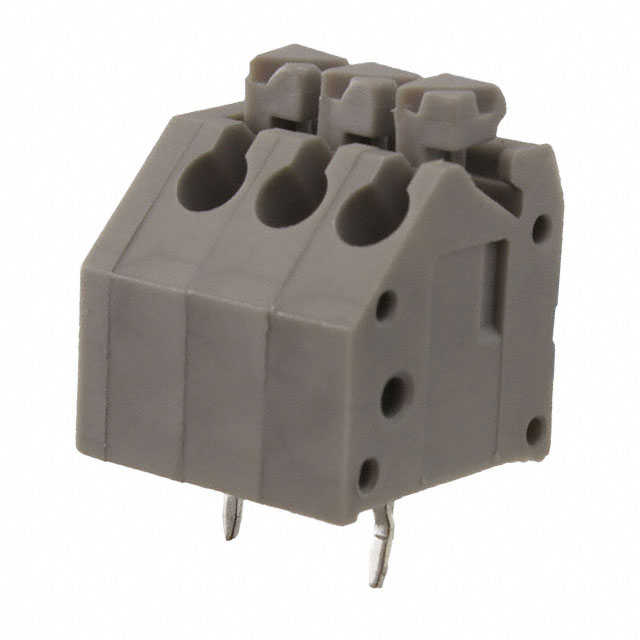

3 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole, Kinked Pin
