SI53325-B-GQR

Obsolete

Skyworks Solutions Inc.

IC CLK BUFFER 1:5 1.25GHZ 32LQFP

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC CLK BUFFER 1:5 1.25GHZ 32LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	SI53325-B-GQR

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	1.25 GHz
Input	LVCMOS, HCSL, CML, LVDS, LVPECL
Mounting Type	Surface Mount
Number of Circuits	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL

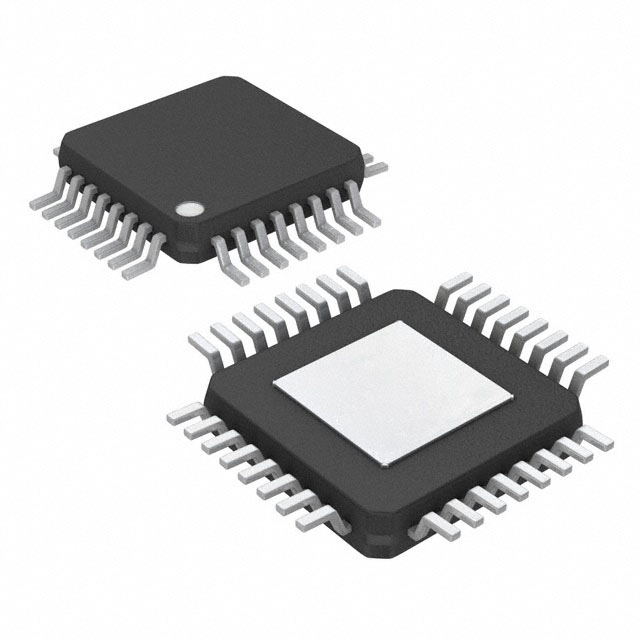

Package / Case	32-LQFP Exposed Pad
Ratio - Input:Output	1:5
Supplier Device Package	32-LQFP (7x7)
Type	Fanout Buffer (Distribution)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	2.375 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Mounting Type	Ratio - Input:Output	Supplier Device Package	Type	Frequency - Max [Max]	Output	Package / Case	Number of Circuits	Input
Skyworks Solutions Inc. SI53325-B-GM	85 °C	-40 °C	3.63 V	2.375 V			Surface Mount	1:5	32-QFN (5x5)	Fanout Buffer (Distribution)	1.25 GHz	LVPECL	32-VFQFN Exposed Pad	2	CML HCSL LVCMOS LVDS LVPECL
Skyworks Solutions Inc. SI53325-B-GQR	85 °C	-40 °C	3.63 V	2.375 V			Surface Mount	1:5	32-LQFP (7x7)	Fanout Buffer (Distribution)	1.25 GHz	LVPECL	32-LQFP Exposed Pad	2	CML HCSL LVCMOS LVDS LVPECL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clock Fanout Buffer (Distribution) IC 1:5 1.25 GHz 32-LQFP Exposed Pad
