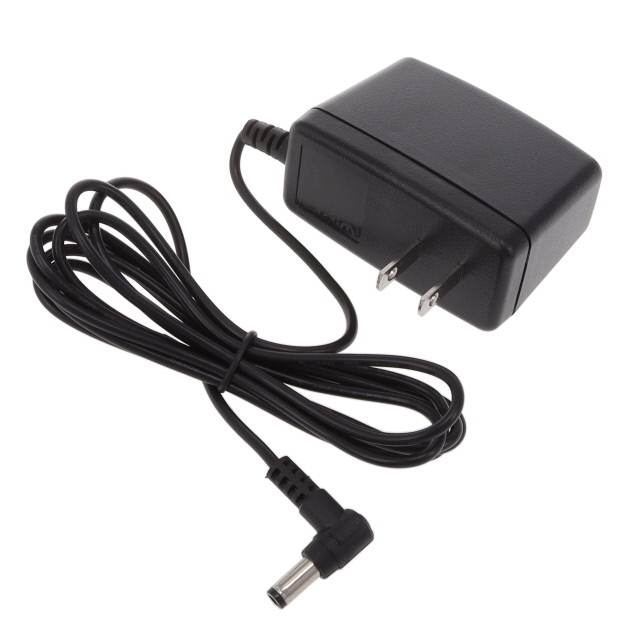

TRG1524-A-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 24V 15W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 24V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TRG1524-A-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	630 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.84 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Applications	Standard Number	Voltage - Output	Current - Output (Max) [Max]	Region Utilized	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Efficiency	Power (Watts)	Cord Length	Cord Length	Input Connector	Polarization	Form	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Cincon Electronics Co. LTD TRG1524-U-01E03 VI	ITE (Commercial)	60950-1	24 V	630 mA	United Kingdom	CE cULus FCC GS PSE TUV	-20 C	60 °C	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	15 W	70.9 in	1.8 m	BS 1363	Positive Center	Wall Mount (Class I)	Fixed Blade	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in
Cincon Electronics Co. LTD TRG1524-E-01E03 VI	ITE (Commercial)	60950-1	24 V	630 mA	Europe	CE cULus FCC GS PSE TUV	-20 C	60 °C	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	15 W	70.9 in	1.8 m	KSC 8305	Positive Center	Wall Mount (Class II)	Fixed Blade	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in
Cincon Electronics Co. LTD TRG1524-S-01E03 VI	ITE (Commercial)	60950-1	24 V	630 mA	Australia	CE cULus FCC GS PSE TUV	-20 C	60 °C	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	15 W	70.9 in	1.8 m	AS 3112	Positive Center	Wall Mount (Class II)	Fixed Blade	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in
Cincon Electronics Co. LTD TRG1524-A-01E03 VI	ITE (Commercial)	60950-1	24 V	630 mA	North America	CE cULus FCC GS PSE TUV	-20 C	60 °C	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	15 W	70.9 in	1.8 m	NEMA 1-15P	Positive Center	Wall Mount (Class II)	Fixed Blade	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
