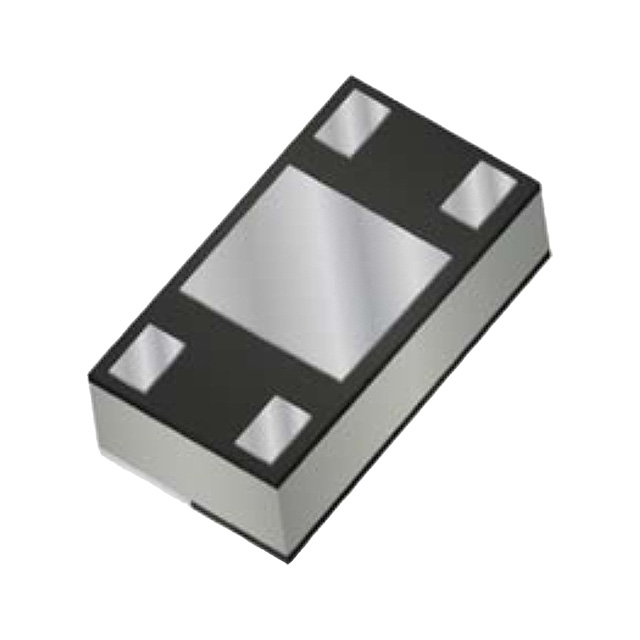

CP1206A28G0ANTR
ActiveKyocera AVX
28GHZ HIGH DIRECTIVITY COUPLER,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP1206A28G0ANTR
ActiveKyocera AVX
28GHZ HIGH DIRECTIVITY COUPLER,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP1206A28G0ANTR |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | -18.5 dB |
| Frequency [Max] | 29.5 GHz |
| Frequency [Min] | 26.5 GHz |
| Insertion Loss | -1 dB |
| Isolation | -30 dB |
| Package / Case | 4 Lead |
| Package / Case | 1206 |
| Package / Case | 3216 Metric |
| Return Loss | -12 dB |
| Supplier Device Package | 1206 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.35 | |
| 10 | $ 8.81 | |||
| 25 | $ 8.39 | |||
| 50 | $ 7.89 | |||
| 100 | $ 7.15 | |||
| 250 | $ 6.91 | |||
| Digi-Reel® | 1 | $ 11.35 | ||
| 10 | $ 8.81 | |||
| 25 | $ 8.39 | |||
| 50 | $ 7.89 | |||
| 100 | $ 7.15 | |||
| 250 | $ 6.91 | |||
| Tape & Reel (TR) | 500 | $ 6.66 | ||
| 1000 | $ 6.41 | |||
Description
General part information
CP1206 Series
RF Directional Coupler General Purpose 26.5GHz ~ 29.5GHz -18.5 ± 1dB 1206 (3216 Metric), 4 PC Pad
