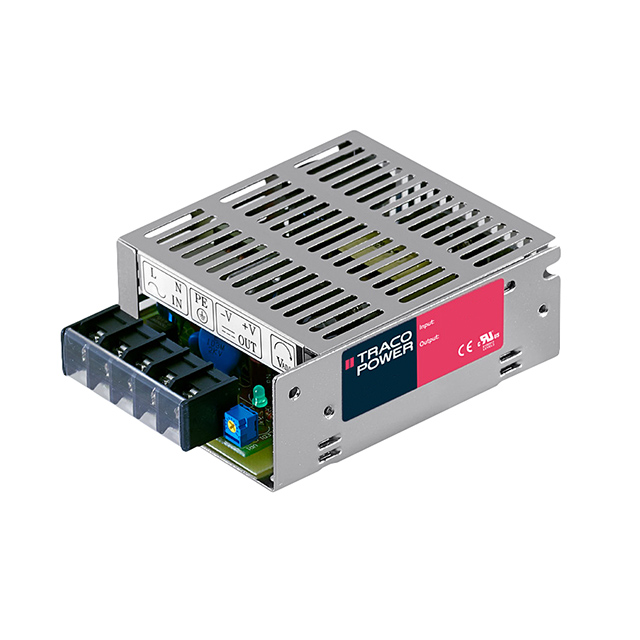

TXL 035-12S

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 12V 3A 36W 6-PIN

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 12V 3A 36W 6-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 375 VDC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TXL 035-12S	TXL 035 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Current - Output 1	3 A	1.5 - 3 A
Current - Output 2	-	1.5 A
Efficiency	84 %	84 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	-	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	36 W	36 W
Size / Dimension [x]	99.1 mm	99.1 mm
Size / Dimension [x]	3.9 "	3.9 "
Size / Dimension [y]	3.23 "	3.23 "
Size / Dimension [y]	82 mm	82 mm
Size / Dimension [z]	35.1 mm	35.1 mm
Size / Dimension [z]	1.38 in	1.38 in
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC	264 - 375 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	12 - 24 V
Voltage - Output 2	-	-15 V

AC/DC POWER SUPPLY SINGLE-OUT 12V 3A 36W 6-PIN

Part	Power (Watts)	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Isolation	Voltage - Output 2	Current - Output 2
Traco Power TXL 035-12S	36 W	12 V	1	84 %	264 VAC, 375 VDC	85 VAC, 120 VDC	Chassis Mount	3 A	Enclosed	-20 °C	70 °C	CE, cURus	Adjustable Output, Universal Input	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	ITE (Commercial)	3000 V
Traco Power TXL 035-1515D	36 W	15 V	2	84 %	264 VAC, 375 VDC	85 VAC, 120 VDC	Chassis Mount	2.4 A	Enclosed	-20 °C	70 °C	CE, cURus	Adjustable Output, Universal Input	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	ITE (Commercial)	3000 V	-15 V	1.5 A
Traco Power TXL 035-24S	36 W	24 V	1	84 %	264 VAC, 375 VDC	85 VAC, 120 VDC	Chassis Mount	1.5 A	Enclosed	-20 °C	70 °C	CE, cURus	Adjustable Output, Universal Input	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	ITE (Commercial)	3000 V
Traco Power TXL 035-15S	36 W	15 V	1	84 %	264 VAC, 375 VDC	85 VAC, 120 VDC	Chassis Mount	2.4 A	Enclosed	-20 °C	70 °C	CE, cURus	Adjustable Output, Universal Input	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	ITE (Commercial)	3000 V
