0041.8841.6107

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

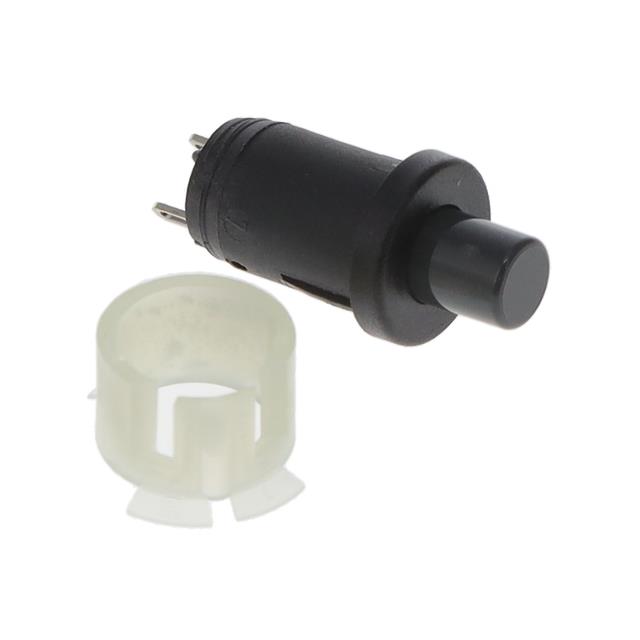

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

Specification	0041.8841.6107	0041.8841 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	-	Red
Current Rating (Amps)	200 mA	200 mA
Electrical Life	10000 Cycles	10000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	8 mm	8 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - AC	60 V	60 V
Voltage Rating - DC	50 VDC	50 VDC

Part	Mounting Type	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Voltage Rating - DC	Mechanical Life	Termination Style	Ingress Protection	Type	Voltage Rating - AC	Switch Function	Circuit	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]
SCHURTER Inc. 0041.8841.3107	Panel Mount, Front	Red	-25 °C	85 °C	10000 Cycles	No Marking	50 VDC	10000 Steps	Solder Lug	IP40	Standard	60 V	Off-Mom	SPST-NO	200 mA	Button, Round	8 mm
SCHURTER Inc. 0041.8841.6107	Panel Mount, Front		-25 °C	85 °C	10000 Cycles	No Marking	50 VDC	10000 Steps	Solder Lug	IP40	Standard	60 V	Off-Mom	SPST-NO	200 mA	Button, Round	8 mm
