SO63-5-55-22-90

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.275/0.3"

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.275/0.3"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SO63-5-55-22-90	SO63-5 Series

Color	Transparent - Blue	Transparent - Blue
Diameter	7.62 mm, 6.99 mm	6.99 - 7.62 mm
Diameter	0.3 ", 0.275 "	0.275 - 0.3 "
Features	Immersion Resistant, Pre-Installed Lead Wire	Immersion Resistant, Pre-Installed Lead Wire
Length	19.05 mm	19.05 mm
Length	0.75 in	0.75 in
Type	Wire to Wire	Wire to Wire

SLDR SLEEVE WIRE-WIRE 0.275/0.3"

Part	Length	Length	Color	Diameter	Diameter	Features	Type
TE Connectivity Aerospace, Defense and Marine SO63-5-55-20-90	19.05 mm	0.75 in	Transparent - Blue	6.99 mm, 7.62 mm	0.275 ", 0.3 "	Immersion Resistant, Pre-Installed Lead Wire	Wire to Wire
TE Connectivity Aerospace, Defense and Marine SO63-5-55-22-90	19.05 mm	0.75 in	Transparent - Blue	6.99 mm, 7.62 mm	0.275 ", 0.3 "	Immersion Resistant, Pre-Installed Lead Wire	Wire to Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

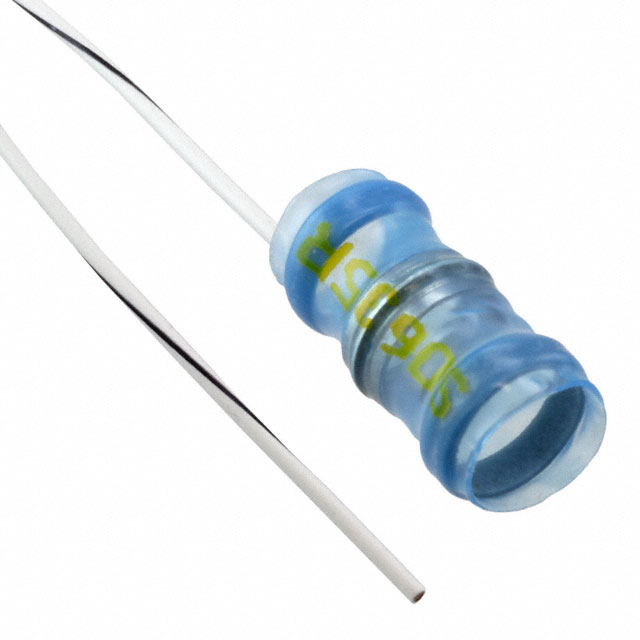

Wire to Wire Solder Sleeve Transparent - Blue 0.275" (6.99mm), 0.300" (7.62mm)
