AFB0405MA-AFGE

Active

Delta Electronics

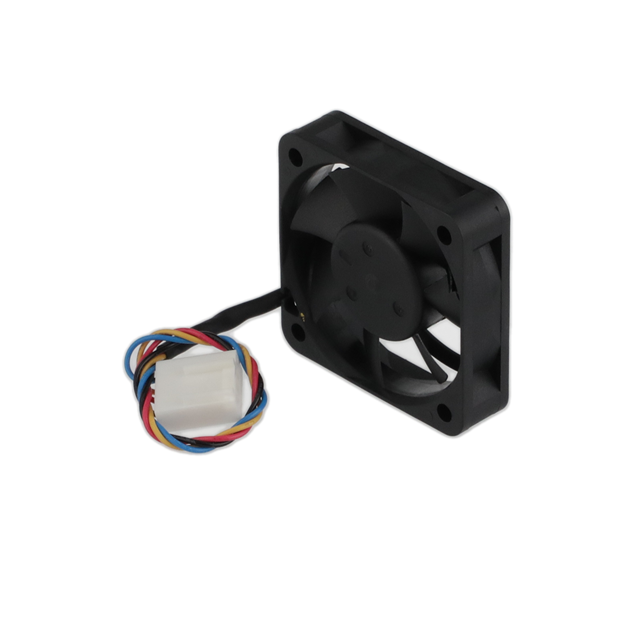

FAN AXIAL 40X10MM 5VDC RECT CONN

AFB0405MA-AFGE

Active

Delta Electronics

FAN AXIAL 40X10MM 5VDC RECT CONN

Description Specifications Series Pricing CAD Documents

Description

General part information

AFB0405 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 5.7 CFM (0.160m³/min) 4 Position Rectangular Connector

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0405MA-AFGE

Air Flow	5.7 CFM
Approval Agency	cURus, VDE, CE
Bearing Type	Ball
Current Rating	50 mA
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21.5 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	250 mW
RPM	5000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	0.104 in H2O
Termination	4 Position Rectangular Connector
Termination Leads Count	4 leads
Termination Type	Position Rectangular Connector
Voltage - Rated	5 VAC
Voltage Range (Max)	5.5 VDC
Voltage Range (Min)	4.5 VDC
Weight	0.031 lb
Width	10 mm

AFB0405 Series

Part	Approval Agency	Fan Type	Air Flow	Width	Power (Watts)	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Noise	Weight	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Static Pressure	Termination Leads Count	Termination Type	Termination	RPM	Features	Bearing Type	Material - Blade	Material - Frame	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Lifetime
Delta Electronics AFB0405HHA-AF00	CE CSA UL VDE	Tubeaxial	8.2 CFM	10 mm	450 mW	40 mm	Square	40 mm	31.5 dB	0.031 lb	158 °F	14 °F	5 VAC	0.19 in H2O	3	Wire Leads	3 Wire Leads	7000 RPM	Locked Rotor Protection Speed Sensor (Tach)	Ball	Plastic	Plastic	0.09 A	5.5 VDC	4 VDC	70000 Hrs
Delta Electronics AFB0405LA-A	CE CSA UL VDE	Tubeaxial	4.4 CFM	10 mm	150 mW	40 mm	Square	40 mm	16 dB	0.031 lb	158 °F	14 °F	5 VAC	0.068 in H2O	2 leads	Wire Leads	2 Wire Leads	4000 RPM	Locked Rotor Protection	Ball	Plastic	Plastic	30 mA	5.5 VDC	4.5 VDC	70000 Hrs
Delta Electronics AFB0405VHA-A	CE CSA UL VDE	Tubeaxial	9.3 CFM	10 mm	550 mW	40 mm	Square	40 mm	35.5 dB	0.031 lb	158 °F	14 °F	5 VAC	0.242 in H2O	2 leads	Wire Leads	2 Wire Leads	8000 RPM	Locked Rotor Protection	Ball	Plastic	Plastic	110 mA	5.5 VDC	4.5 VDC	70000 Hrs
Delta Electronics AFB0405HA-AR00	CE CSA UL VDE	Tubeaxial	6.9 CFM	10 mm	350 mW	40 mm	Square	40 mm	27 dB	0.031 lb	158 °F	14 °F	5 VAC	0.14 in H2O	3	Wire Leads	3 Wire Leads	6000 RPM	Locked Rotor Sensor	Ball	Plastic	Plastic	70 mA	5.5 VDC	4.5 VDC	70000 Hrs
Delta Electronics AFB0405MA-A	CE CSA UL VDE	Tubeaxial	5.7 CFM	10 mm	250 mW	40 mm	Square	40 mm	21.5 dB	0.031 lb	158 °F	14 °F	5 VAC	0.104 in H2O	2 leads	Wire Leads	2 Wire Leads	5000 RPM	Locked Rotor Protection	Ball	Plastic	Plastic	50 mA	5.5 VDC	4.5 VDC	70000 Hrs
Delta Electronics AFB0405MA-AFGE	CE cURus VDE	Tubeaxial	5.7 CFM	10 mm	250 mW	40 mm	Square	40 mm	21.5 dB	0.031 lb	158 °F	14 °F	5 VAC	0.104 in H2O	4 leads	Position Rectangular Connector	4 Position Rectangular Connector	5000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	Plastic	Plastic	50 mA	5.5 VDC	4.5 VDC	70000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AFB0405MA-AFGE | Datasheet
