D38999/24WD19SN

Active

Amphenol Aerospace Operations

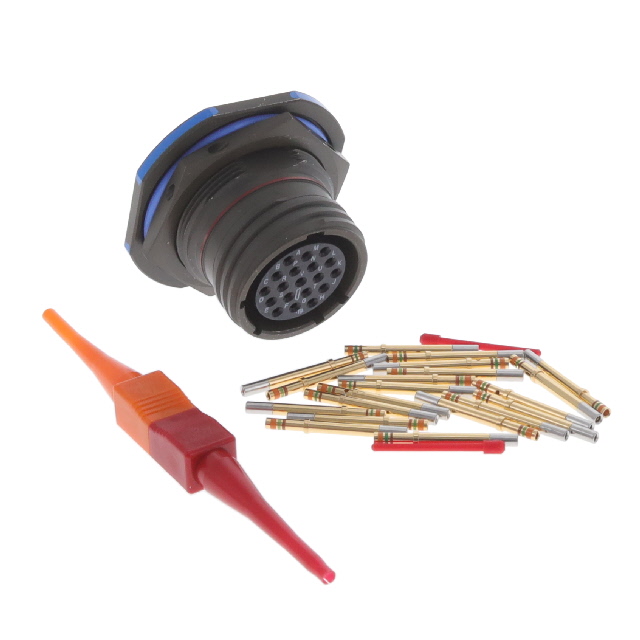

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WD19SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WD19SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/24WD Series

Part	Shell Finish	Color	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Ingress Protection	Applications	Shell Material	Shell Size, MIL	Contact Finish - Mating	Mounting Feature	Qualification	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Grade	Shielding	Connector Type	Shell Size - Insert	Insert Material	Contact Size	Contact Shape	Type	Note	Housing Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Type	Contact Size
Amphenol Aerospace Operations D38999/24WD19JA	Olive Drab Cadmium	Olive Drab	19	15	Environment Resistant	Aviation Marine Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	A	19	-65 ░C	347 °F	Metal	2.54 çm	100 çin	Copper Alloy	Crimp	Military	Shielded	Receptacle Female Sockets
Amphenol Aerospace Operations D38999/24WD5JN	Olive Drab Cadmium	Olive Drab			Environment Resistant	Aerospace Aviation Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	N		-65 ░C	347 °F	Metal	2.54 çm	100 çin	Copper Alloy	Crimp	Military	Shielded	Receptacle Female Sockets	15-5
Amphenol Aerospace Operations D38999/24WD35PNLC	Cadmium				Environment Resistant		Aluminum	D		Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	N	37	-65 ░C	347 °F	Metal					Military	Shielded	Receptacle Housing		Thermoplastic	22D	Circular	For Male Pins	Contacts Not Included	Olive Drab	15	35	Crimp
Amphenol Aerospace Operations D38999/24WD97JN	Olive Drab Cadmium	Olive Drab			Environment Resistant	Aerospace Aviation Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	N	12	-65 ░C	347 °F	Metal	2.54 çm	100 çin	Copper Alloy	Crimp	Military	Shielded	Receptacle Female Sockets								15	97
Amphenol Aerospace Operations D38999/24WD5SA-LC	Cadmium				Environment Resistant		Aluminum	D		Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	A		-65 ░C	347 °F						Military	Shielded	Receptacle Housing	15-5			Circular	For Female Sockets	Contacts Not Included	Olive Drab			Crimp	16
Amphenol Aerospace Operations D38999/24WD35HA	Olive Drab Cadmium	Olive Drab			Environment Resistant	Aerospace Aviation Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	A	37	-65 ░C	347 °F	Metal	2.54 çm	100 çin	Copper Alloy	Crimp	Military	Shielded	Male Pins Receptacle								15	35
Amphenol Aerospace Operations D38999/24WD19SN	Olive Drab Cadmium	Olive Drab	19	15	Environment Resistant	Aerospace Aviation Marine Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	N	19	-65 ░C	347 °F	Metal	1.27 µm	50 µin	Copper Alloy	Crimp	Military	Shielded	Receptacle Female Sockets
Amphenol Aerospace Operations D38999/24WD5SN	Olive Drab Cadmium	Olive Drab			Environment Resistant	Aerospace Aviation Marine Military	Aluminum	D	Gold	Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	N		-65 ░C	347 °F	Metal	1.27 µm	50 µin	Copper Alloy	Crimp	Military	Shielded	Receptacle Female Sockets	15-5
Amphenol Aerospace Operations D38999/24WD18PA-LC	Cadmium				Environment Resistant		Aluminum	D		Bulkhead - Front Side Nut	MIL-DTL-38999 Series III	A	18	-65 ░C	347 °F						Military	Shielded	Receptacle Housing				Circular	For Male Pins	Contacts Not Included	Olive Drab	15	18	Crimp	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 284.01
		10	$ 272.72
		25	$ 249.33

Description

General part information

D38999/24WD Series

19 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
