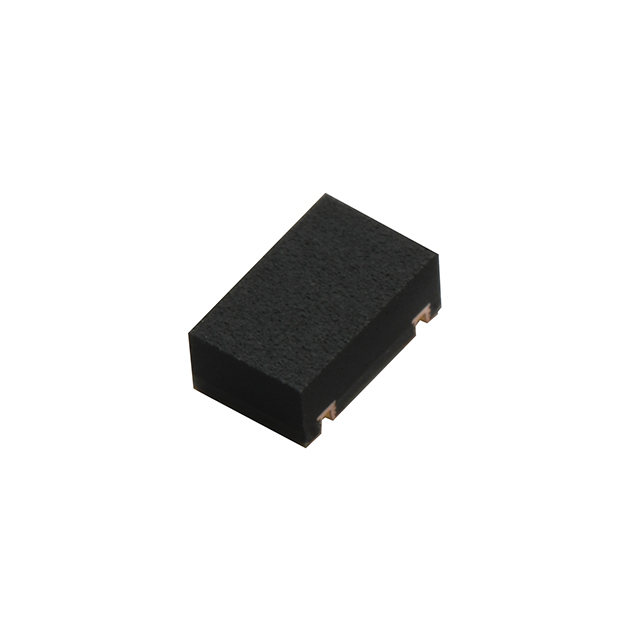

TLP3480(TP,E
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NO 4.5A 0-30V T&R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP3480(TP,E
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NO 4.5A 0-30V T&R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP3480(TP,E |
|---|---|
| Load Current | 4.5 A |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 50 mOhms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD |
| Package / Case | 0.083 in |
| Package / Case | 2.1 mm |
| Supplier Device Package | P-SON4 |
| Termination Style | SMD (SMT) Tab |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.17 | |
| 10 | $ 3.59 | |||
| 100 | $ 2.77 | |||
| 500 | $ 2.45 | |||
| Digi-Reel® | 1 | $ 5.17 | ||
| 10 | $ 3.59 | |||
| 100 | $ 2.77 | |||
| 500 | $ 2.45 | |||
| Tape & Reel (TR) | 1500 | $ 2.30 | ||
| 3000 | $ 2.23 | |||
| 4500 | $ 2.21 | |||
Description
General part information
TLP348 Series
Solid State SPST-NO (1 Form A) 4-SMD (0.083", 2.10mm)
