DTS24Y09-98PN [V001]

Active

TE Connectivity Raychem Cable Protection

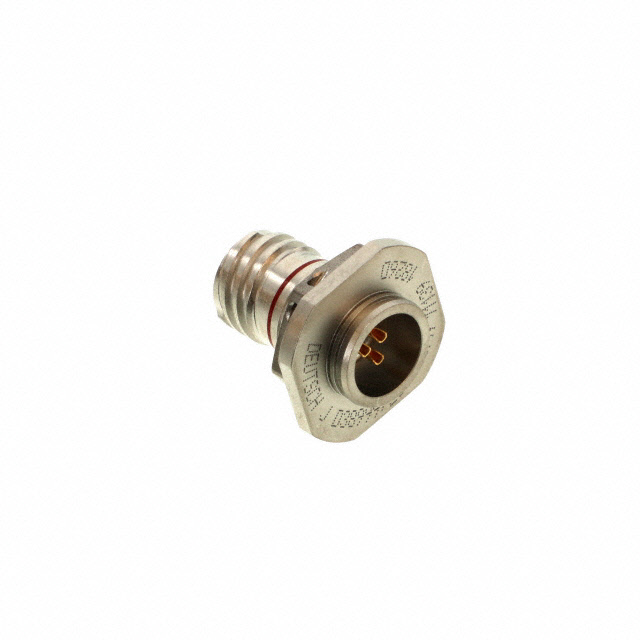

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	DTS24Y09-98PN [V001]

Applications	Aviation, Marine, Military
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	Environment Sealed
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electropolish
Shell Material	Stainless Steel
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Termination	Crimp

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Connector Type	Applications	Contact Material	Current Rating (Amps)	Shell Finish	Insert Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Feature	Orientation	Primary Material	Qualification	Contact Finish - Mating	Ingress Protection	Termination
TE Connectivity Raychem Cable Protection DTS24Y09-98PN [V001]	1.27 µm	50 µin	Stainless Steel	Male Pins Receptacle	Aviation Marine Military	Copper Alloy	5 A	Electropolish	Thermoplastic	98	9	Bulkhead - Front Side Nut	N	Metal	MIL-DTL-38999 Series III	Gold	Environment Sealed	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp
