LSM303DLMTR

Obsolete

STMicroelectronics

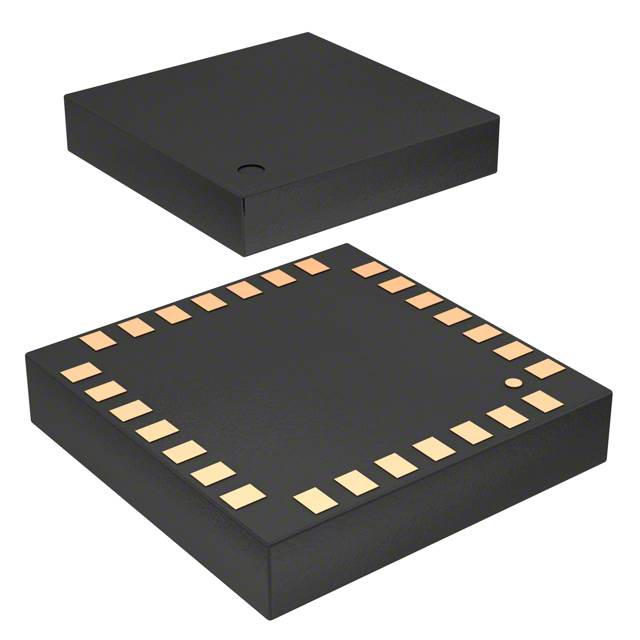

IMU ACCEL/MAG 3-AXIS I2C 28LGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSM303DLMTR

Obsolete

STMicroelectronics

IMU ACCEL/MAG 3-AXIS I2C 28LGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSM303DLMTR

Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C
Package / Case	28-VFLGA Module
Sensor Type	6 Axis, Accelerometer, Magnetometer
Supplier Device Package	28-LGA (5x5)

STEVAL-MKI172V1 Series

LSM303AGR adapter board for a standard DIL 24 socket

Part	Function	Suggested Programming Environment	Utilized IC / Part	Type	Contents	Interconnect System	Platform	Output Type	Sensor Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
STMicroelectronics STEVAL-MKI172V1	Accelerometer Magnetometer	Unico	LSM303AGR	Sensor	Board(s)	DIL24	Professional MEMS Tool
STMicroelectronics LSM303CTR								I2C SPI	6 Axis Accelerometer Magnetometer Temperature	12-VFLGA Module	Surface Mount	85 °C	-40 °C	12-LGA (2x2)
STMicroelectronics STEVAL-MKI173V1	Accelerometer Magnetometer	Unico	LSM303AH	Sensor	Board(s)	DIL24	Professional MEMS Tool
STMicroelectronics STEVAL-MKI114V1	Accelerometer Magnetometer	Unico	LSM303DLHC	Sensor	Board(s)	DIL24	Professional MEMS Tool
STMicroelectronics STEVAL-MKI113V1	Accelerometer Magnetometer	Unico	LSM303DLM	Sensor	Board(s)	DIL24	Professional MEMS Tool
STMicroelectronics LSM303DLMTR								I2C	6 Axis Accelerometer Magnetometer	28-VFLGA Module	Surface Mount	85 °C	-40 °C	28-LGA (5x5)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STEVAL-MKI172V1 Series

The STEVAL-MKI172V1 is an adapter board designed to facilitate the evaluation of the LSM303AGR e-compass module. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

The STEVAL-MKI172V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM303AGR pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line.

This adapter is supported by the STEVAL-MKI109V3 and STEVAL-MKI109D development platforms that include a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the MEMS Studio downloadable graphical user interface or dedicated software routines for customized applications.

Documents

Technical documentation and resources
