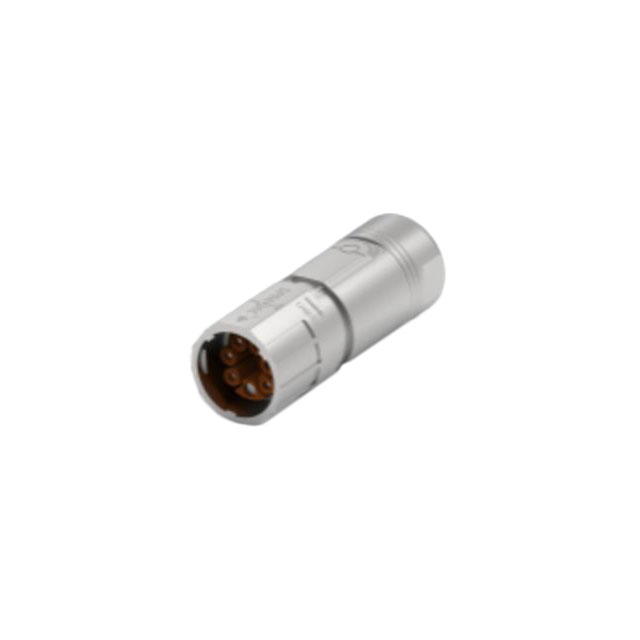

HSA202N00420100000

Active

TE Intercontec

CONN PLG HSG FMALE 10POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 10POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HSA202N00420100000	HSA20 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Fastening Type	Push-Twist	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	10
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shielding	Shielded	Shielded
Type	For Female Sockets	For Female Sockets

CONN PLG HSG FMALE 10POS INLINE

Part	Shell Material	Includes	Shell Finish	Type	Orientation	Insert Material	Housing Color	Material Flammability Rating	Shielding	Contact Shape	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Fastening Type	Note	Number of Positions
TE Intercontec HSA202N00420100000	Zinc Die Cast	1 Backshell, 1 Cable Clamp, 1 Connector	Nickel	For Female Sockets	Keyed	Polyamide (PA66), Nylon 6/6	Silver	UL94 V-0	Shielded	Circular	IP66/IP67	Free Hanging (In-Line)	-20 C	130 °C	Backshell, Cable Clamp, Coupling Nut	Plug Housing	Push-Twist	Contacts Not Included	10
TE Intercontec HSA206N00420100000	Zinc Die Cast	1 Backshell, 1 Cable Clamp, 1 Connector	Nickel	For Female Sockets	Keyed	Polyamide (PA66), Nylon 6/6	Silver	UL94 V-0	Shielded	Circular	IP66/IP67	Free Hanging (In-Line)	-20 C	130 °C	Backshell, Cable Clamp, Coupling Nut	Plug Housing	Push-Twist	Contacts Not Included	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (3 + 6 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
