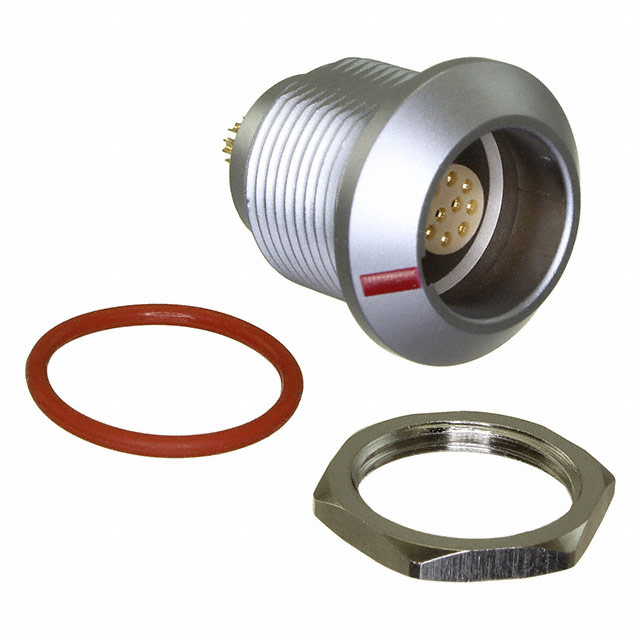

FLKC-10EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKC-10EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	C-10
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shell Finish	Applications	Shell Material	Voltage Rating	Current Rating (Amps)	Insert Material	Primary Material	Contact Finish - Mating	Fastening Type	Color	Orientation	Number of Positions	Shell Size - Insert	Ingress Protection	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Feature	Shielding
Amphenol LTW FLKC-10EGFS-GCP-001	Chrome	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	250 VDC	2.5 A	Polyphenylene Sulfide (PPS)	Metal	Gold	Push-Pull	Silver	G	10	C-10	IP68 - Dust Tight Waterproof	Copper Alloy	125 °C	-40 °C	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
