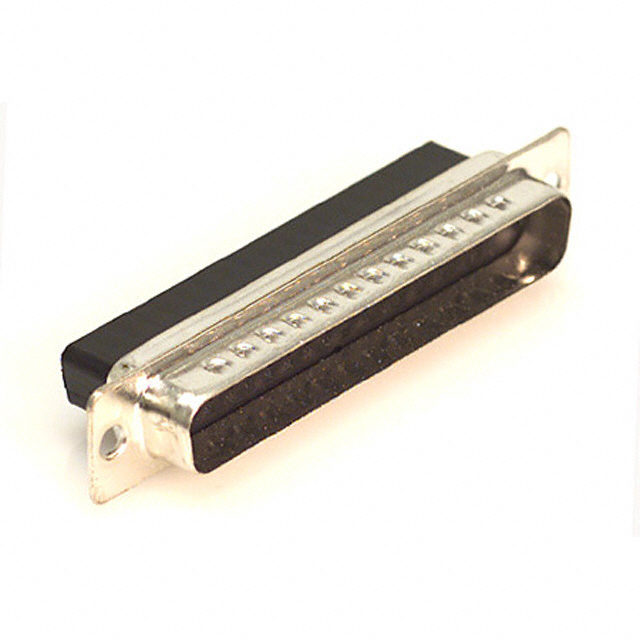

170-037-172L000

Obsolete

NorComp Inc.

CONN D-SUB HOUSING PLUG 37POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

170-037-172L000

Obsolete

NorComp Inc.

CONN D-SUB HOUSING PLUG 37POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

170-037 Series

Plug for Male Contacts Housing D-Sub Connector 37 Position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	170-037-172L000	170-037 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug for Male Contacts	Receptacle for Female Contacts, Plug for Male Contacts
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled
Features	-	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)	Cable Side, Housing/Shell (Unthreaded), 4-40
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	37	37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-50 °C	-50 °C
Shell Material, Finish	-	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)

170-037 Series

CONN D-SUB HOUSING RCPT 37POS

Part	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shell Size, Connector Layout	Flange Feature	Number of Rows	Connector Type	Contact Type	Number of Positions	Note	Mounting Type	Color	Shell Material, Finish	Features
NorComp Inc. 170-037-272L010	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Cable Side	2	Receptacle for Female Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black
NorComp Inc. 170-037-272L000	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Housing/Shell (Unthreaded)	2	Receptacle for Female Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black
NorComp Inc. 170-037-273L000	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Housing/Shell (Unthreaded)	2	Receptacle for Female Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black	Nickel Plated, Steel
NorComp Inc. 170-037-173L010	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT), Glass Filled	4 (DC, C)	Cable Side	2	Plug for Male Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black	Nickel Plated, Steel	Grounding Indents
NorComp Inc. 170-037-272L030	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	4-40	2	Receptacle for Female Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black
NorComp Inc. 170-037-172L000	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Housing/Shell (Unthreaded)	2	Plug for Male Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black
NorComp Inc. 170-037-173L000	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT), Glass Filled	4 (DC, C)	Housing/Shell (Unthreaded)	2	Plug for Male Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black	Nickel Plated, Steel	Grounding Indents
NorComp Inc. 170-037-273L020	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Cable Side	2	Receptacle for Female Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black	Nickel Plated, Steel
NorComp Inc. 170-037-172L010	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	4 (DC, C)	Cable Side	2	Plug for Male Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)	Black
NorComp Inc. 170-037-173L020	D-Sub	-50 °C	125 °C	Polybutylene Terephthalate (PBT), Glass Filled	4 (DC, C)	Cable Side	2	Plug for Male Contacts	Signal	37	Contacts Not Included	Free Hanging (In-Line)		Nickel Plated, Steel	Grounding Indents
