A7WXB-0910G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFU09B/AE09G/X
Deep-Dive with AI
Search across all available documentation for this part.
A7WXB-0910G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFU09B/AE09G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7WXB-0910G | A7WXB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB37, DB9, DB15, DB25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.47 | |
| 10 | $ 13.64 | |||
| 25 | $ 12.66 | |||
| 50 | $ 11.97 | |||
| 100 | $ 11.32 | |||
| 250 | $ 10.51 | |||
| 500 | $ 9.94 | |||
| 1000 | $ 9.60 | |||
A7WXB Series
CABLE D-SUB - AFU37B/AE37M/X
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | 2nd Connector | Color | Contact Finish | Shielding | Type | 1st Connector | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7WXB-3706M | 37 | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB37 | Female Sockets, Receptacle | 6 ft | 1.83 m |
TE Connectivity AMP Connectors A7WXB-0910G | 9 | 0.76 Ám | 30 Áin | Individual Wire Leads | Gold | Unshielded | DB9 | Female Sockets, Receptacle | 10 ft | 3.05 m | |
TE Connectivity AMP Connectors A7WXB-1510M | 15 | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB15 | Female Sockets, Receptacle | 10 ft | 3.05 m |
TE Connectivity AMP Connectors A7WXB-1506M | 15 | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB15 | Female Sockets, Receptacle | 6 ft | 1.83 m |
TE Connectivity AMP Connectors A7WXB-2510M | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB25 | Female Sockets, Receptacle | 10 ft | 3.05 m | |
TE Connectivity AMP Connectors A7WXB-2506G | 0.76 Ám | 30 Áin | Individual Wire Leads | Gold | Unshielded | DB25 | Female Sockets, Receptacle | 6 ft | 1.83 m | ||
TE Connectivity AMP Connectors A7WXB-1506G | 15 | 0.76 Ám | 30 Áin | Individual Wire Leads | Gold | Unshielded | DB15 | Female Sockets, Receptacle | 6 ft | 1.83 m | |
TE Connectivity AMP Connectors A7WXB-0906M | 9 | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB9 | Female Sockets, Receptacle | 6 ft | 1.83 m |
TE Connectivity AMP Connectors A7WXB-0906G | 9 | 0.76 Ám | 30 Áin | Individual Wire Leads | Gold | Unshielded | DB9 | Female Sockets, Receptacle | 6 ft | 1.83 m | |
TE Connectivity AMP Connectors A7WXB-3710M | 37 | 0.76 Ám | 30 Áin | Individual Wire Leads | Multiple, Ribbon | Gold | Unshielded | DB37 | Female Sockets, Receptacle | 10 ft | 3.05 m |
Description
General part information
A7WXB Series

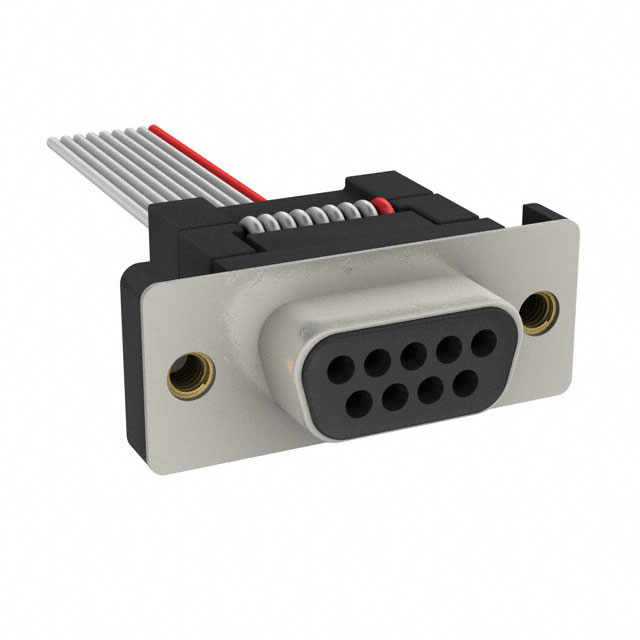

D-Sub Cable Assembly DB9 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
