12-0511-10

Active

Aries Electronics

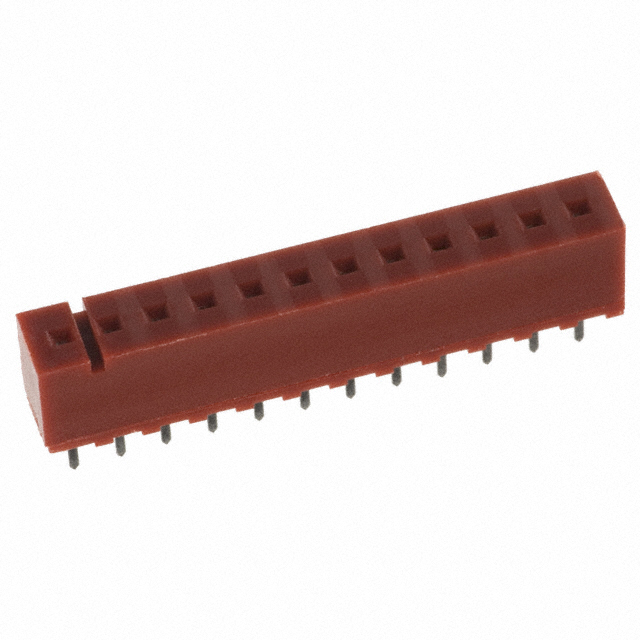

CONN SOCKET SIP 12POS TIN

Search across all available documentation for this part.

Active

Aries Electronics

CONN SOCKET SIP 12POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	12-0511-10

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	12
Number of Positions or Pins (Grid) [custom]	1 x 12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.15 in
Termination Post Length	3.81 mm
Type	SIP

Part	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Type	Contact Material - Post	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Termination Post Length	Termination Post Length	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Mounting Type
Aries Electronics 12-0511-11	UL94 V-0	0.1 in	2.54 mm	-55 °C	125 °C	1 A	2.54 mm	0.1 in	1 x 12	12	SIP	Phosphor Bronze	Gold	Solder	10 çin	0.25 çm	Phosphor Bronze	0.15 in	3.81 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	10 çin	0.25 çm	Gold	Through Hole
Aries Electronics 12-0511-10	UL94 V-0	0.1 in	2.54 mm	-55 °C	105 ░C	1 A	2.54 mm	0.1 in	1 x 12	12	SIP	Phosphor Bronze	Tin	Solder	50 µin	1.27 µm	Phosphor Bronze	0.15 in	3.81 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	50 µin	1.27 µm		Through Hole
