BF1M-C

Active

Panduit Corp

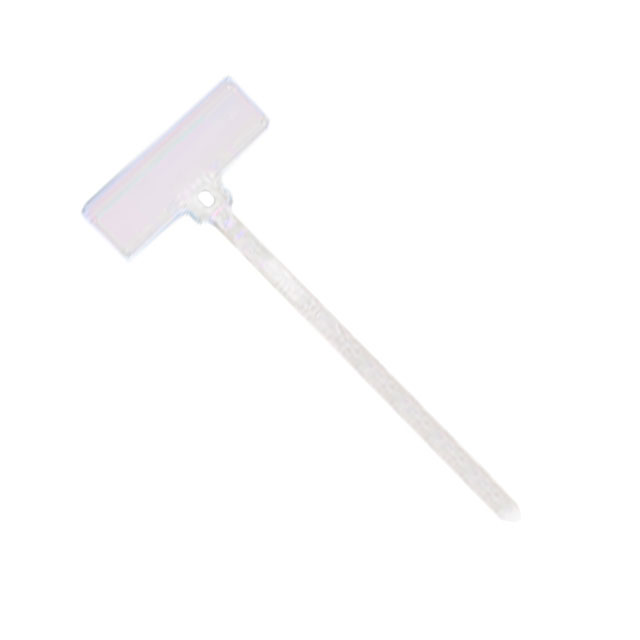

MARKER TIE NATURAL 18LBS 4.6"

Search across all available documentation for this part.

Active

Panduit Corp

MARKER TIE NATURAL 18LBS 4.6"

Technical Specifications

Parameters and characteristics commom to parts in this series

MARKER TIE NATURAL 18LBS 4.6"

Part	Material	Mounting Type	Tensile Strength	Tensile Strength	Length - Approximate	Color	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Width [x]	Width [x]	Features
Panduit Corp BF1M-M	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	4.5 in	Natural	116.74 mm	0.383 ft	4.6 in	0.9 in	22.86 mm	Marker Strap/Flag Tie	0.095 in	2.41 mm
Panduit Corp BF1M-C	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	4.5 in	Natural	116.74 mm	0.383 ft	4.6 in	0.9 in	22.86 mm	Marker Strap/Flag Tie	0.095 in	2.41 mm
Panduit Corp BF1M-M0	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	18 lbs	8.16 kg	4.5 in	Black	116.74 mm	0.383 ft	4.6 in	0.9 in	22.86 mm	Marker Strap/Flag Tie	0.095 in	2.41 mm	Weather Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Marker Strap/Flag Tie Natural 0.90" (22.86mm) 0.095" (2.41mm) 18 lbs (8.16 kg)

Technical documentation and resources

No documents available
